Drag Smartwire Power Control Module

The Racepak SmartWire is the easiest way to wire any vehicle while adding modern electronic features and functions._x000D_ _x000D_ Based on Racepak's exclusive single cable V-Net technology, the Racepak Smartwire module is the electronic "starting point", with a direct main power connection from the vehicle battery to the module. Each input or output is fully user-definable including; function, power requirements and current exceeding limits, via a USB connection to user's PC. The included Datalink II programming software is free to download at any time. The design of the module functions to both reduce overall installation weight and wiring clutter, while providing a quicker reacting electronic system, through the solid state switching design._x000D_ _x000D_ The Racepak V-Net compatibility of the SmartWire unit ensures seamless integration with existing Racepak_x000D_ _x000D_ V-Net equipped vehicles. When connected with existing V-Net equipment, these items provide additional_x000D_ _x000D_ inputs, control modules, and instrumentation, compared to when utilized as a standalone power control module._x000D_ _x000D_ Manual activation can be achieved through the use of the optional eight switch Racepak switch panel (500-SW-PNL8), or 16-channel switch module (500-SW-SM16). From the Racepak SmartWire unit, a single small cable is routed to the Switch panel of choice, reducing wiring clutter. Users needing additional switch panel capabilities can easily expand through the use of a "jumper" cable to a second Racepak Switch Panel or Switch Module.

Features & Benefits
Connectors: Two - 23 pin Ampseal, One 1/4" x 20 Main Power Stud, One mini USB (for programming), One Switch CAN bus (for optional switch panel or module), One V-Net CAN bus for optional V-net accessories, such as sensors).

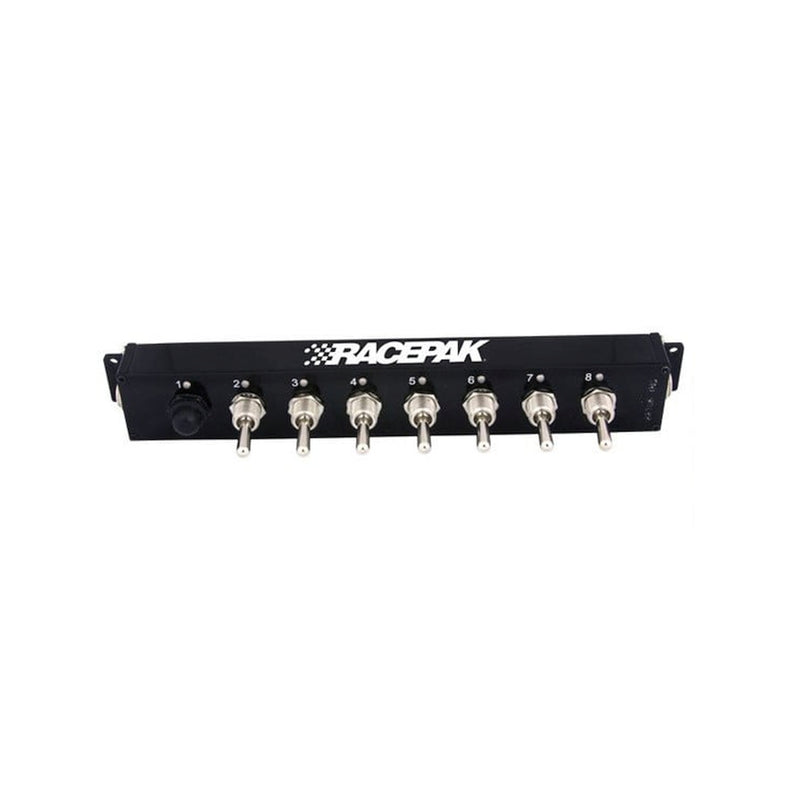

Fits: SmartWire PDM with Switch Panel (8 Channel)

Installation note: This device is not designed to power ignition coils of any type directly.
