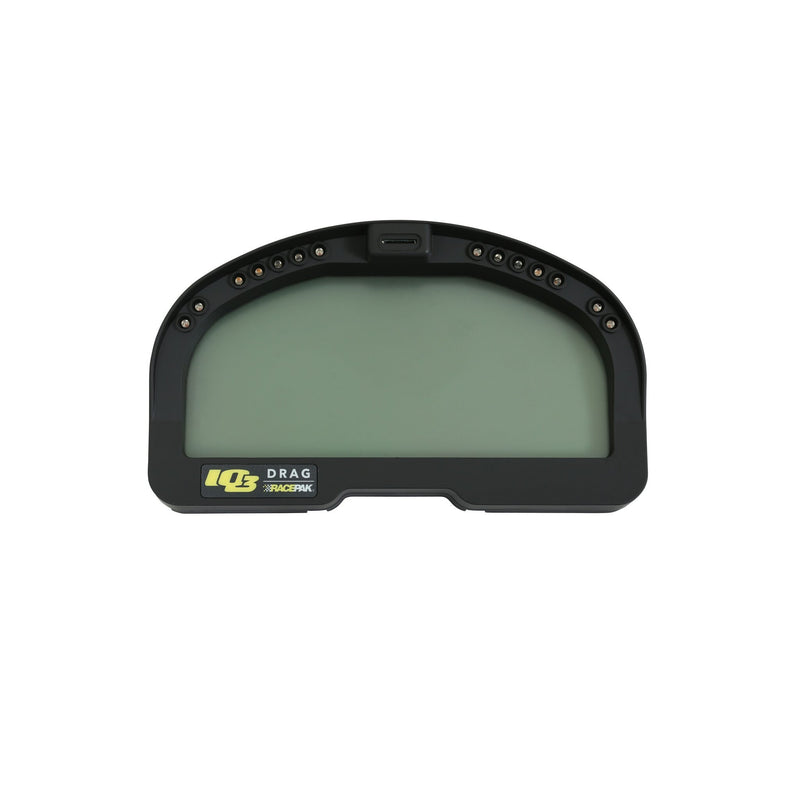

IQ3D Drag Logger Dash

The IQ3D is designed for the sportsman drag racer looking for a compact, all-in-one solution. It combines the look and feel of our popular IQ3 dash with a robust, built-in data logger. The IQ3 Drag Logger Dash mergest Racepak's V-Net single cable sensor technology and with a fully programmable display, creating a complete data center. The full feature dash bundle kit includes the ability to monitor Engine RPM, Driveshaft RPM, Trans Brake Release, Water Temp, Oil Press, Battery volts. The datalink II software included with IQ3 Drag dash provides professional-level data analysis capabilities, but in an easy to learn format.

Features & Benefits
Channels: 12 Total - 6 internal and option to expand 6 V-Net digital/analog

Fits: The IQ3D combines the look and feel of our popular IQ3 dash with a robust, built-in data logger for Sportsman Drag Racing, Street Strip projects, or any vehicle that needs a programmable display with built-in data logging!

Installation note: Start Recording: Utilized to start a recording when either button is held for +5 seconds. REC will be displayed in dash display area during recording. The Grey/White wire can be utilized for this function by default. Compatible ECU systems include the following: AEM V2/EMS-4 Big Stuff 3 Electromotive TECGT EMS EM-Tech ECU Emtron ECU FAST XFI Fuel Tech (200,250,300,350,500v1,500v2, 600) Holley Dominator InjPro Life Racing F88 Link G4+ Series MaxxECU MEFI-4B MegaSquirt-III (DIY Autotune) MicroTech MoTeC CAN (Data set 3) MSD Atomic LS MSD Atomic TBI OBD-II (2008 and later - for vehicles designed to be sold in the USA) Pro EFI User Configured (CAN bus knowledge required) The IQ3D connects to these ECU systems using EFI adapter cables.

Specifications

Product Video

More Racepak tech videos →

Documentation

• Techlibrary iq3d manual release rev d (PDF)
• Techlibrary iq3dr firmware update instructions (PDF)
• Watch the installation video (opens in a new window)

• Manufacturer instructions — techlibrary_iq3d_iq3s_mounting_template (PDF, from Holley)
• Manufacturer instructions — techlibrary_iq3d_firmware_revision_log (PDF, from Holley)
