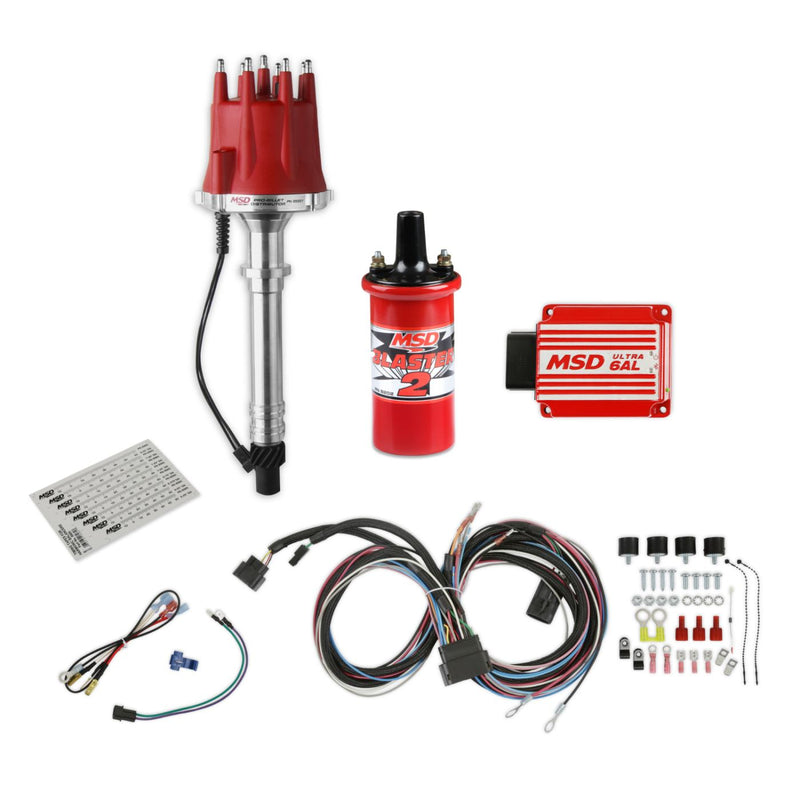

Chevy V8 Pro-Billet Distributor Bundle

The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly.

Features & Benefits
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range

Fits: This is our most popular performance distributor! Must be used with an MSD 6, 7 or 8-series ignition. Contains a Pro-Billet Distributor, Ultra 6AL ignition Box, and a Blaster 2 Ignition Coil.

Installation note: Distributor

In the box: Instruction Manual

Specifications

Product Video
