Part # 85551
$449.95

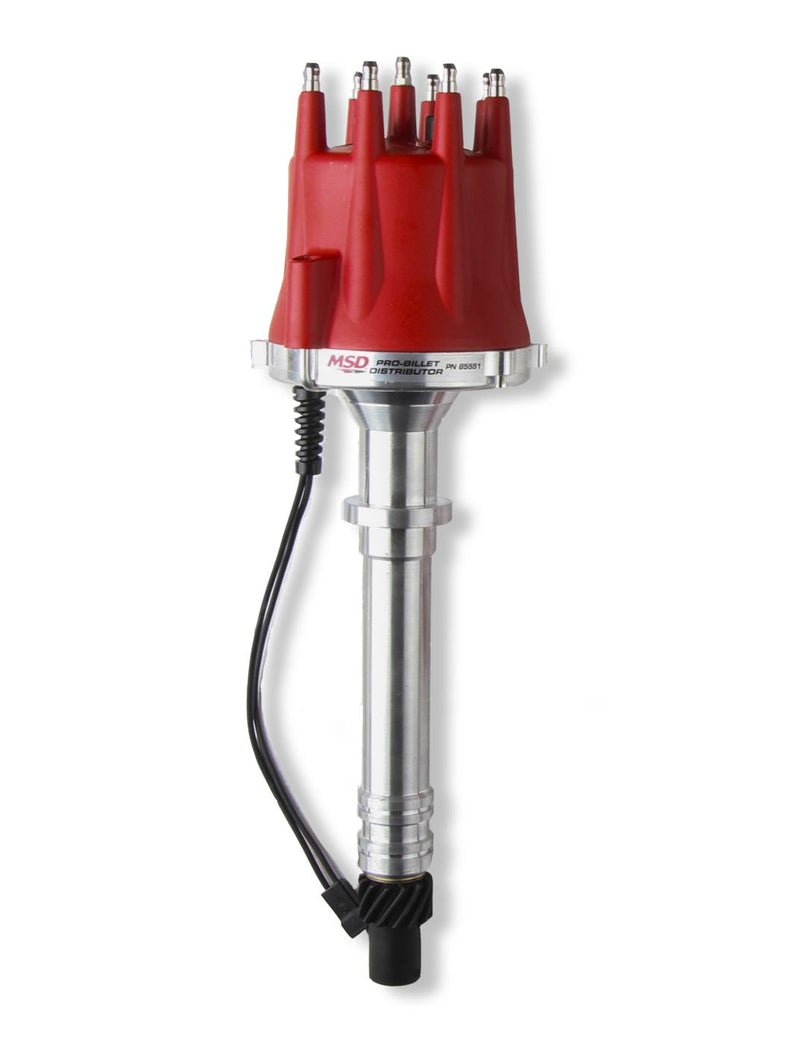

The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenance free. Just above the pick-up is MSD's adjustable mechanical advance assembly.
Features & Benefits
Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
Fits: This is our most popular performance distributor. Must be used with an MSD 6, 7 or 8-series ignition.
⚠ Also required: Ignition Box Required — Yes
In the box: Distributor Cap, Distributor Gear, Ignition Rotor
| Advance Type | Mechanical |
| C.A.R.B. EO # | D-40-39 |
| Cap Color | Red |
| Color | Red |
| Distributor Type | Magnetic Pickup |
| Engine | Chevy V8 |
| Gear | Cast Iron |
| Gear Material | Cast Iron Melonized QPQ Coated |
| Housing Color | Natural |
| Housing Finish | Uncoated |
| Housing Material | 6061-T6 Billet Aluminum |
| Length | Standard |
