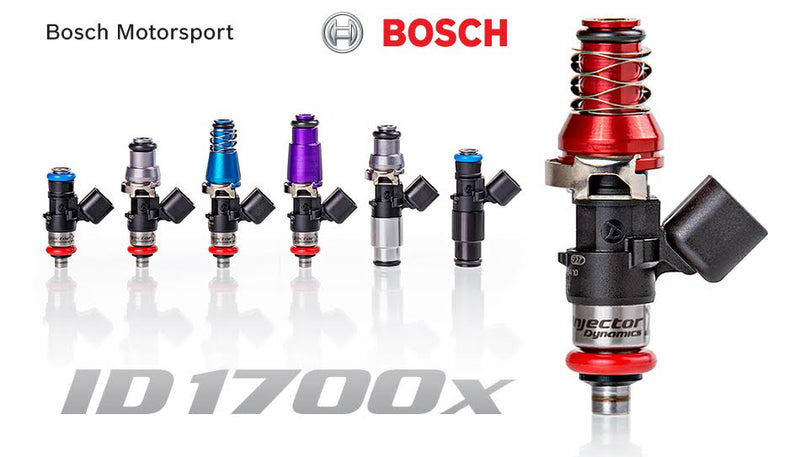

ID1750-XDS GM LS2, 14mm (grey) adaptor top, set of 8. Orange lower o-ring.

The ID1750-XDS is a 1700 cc/min high-performance fuel injector from Injector Dynamics. This part number is the 48mm length configuration with a 14mm top o-ring and a 15mm late-model GM lower o-ring.

Part number breakdown

• 1700 — flow rate, 1700 cc/min
• 48 — length o-ring to o-ring, 48mm
• 14 — top o-ring / fuel rail bore diameter, 14mm
• 15 — 15mm late-model GM lower o-ring

Confirmed applications

• Chevrolet LS2
• Holden Commodore VZ (LS2)
• Holden Monaro (LS2)
• Pontiac GTO 05-06 LS2

All Injector Dynamics injectors ship with new electrical connectors. Plug-and-play wiring adaptors are available separately.
