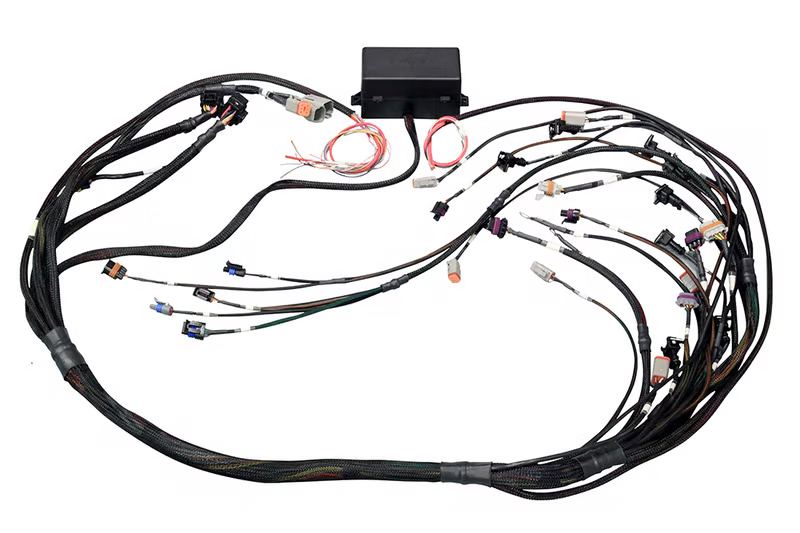

Elite 2500 GM GEN III LS1 (DBW Ready) Term Harn Only - EV1

Elite 2500 GM GEN III LS1 (DBW Ready) Term Harn Only - EV1 — Haltech part number HT-141362.

• Suits: Retrofit of a GEN IV LS2/3 DBW throttlebody. Common US style Delco/Bosch GM alternator connector. Pre-wired to connect directly to OEM 7 Pin Coil Harness Connector. WBC1/2 CAN O2 Wideband Controller ready (Controller and sensor(s) not included) Manual transmission only
• Includes: Engine harness with fuse block and firewall grommet
• Notes: Please confirm your alternator connector (See the product quick start guide) and order an alternator adaptor if required. (HT-040090 or HT-040091) Ignition coils and harnesses are NOT included, Please order 8 x HT-020102 and/or HT-045657 if required

Details

• Product family: Elite Ecu Terminated Engine Harnesses
• Brand: Haltech
• UPC: 9356450007122
• Weight: 2812 g

Documentation

• Quick start guide (3.2M)

Product Video

More Haltech tech videos →

Haltech engine management is supported by The EFI Store with tuning and installation help. Contact us if you are unsure which parts your combination needs.
