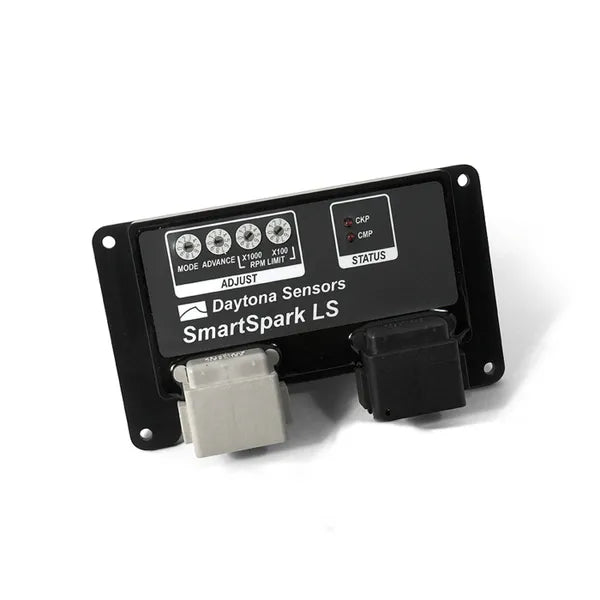

SmartSpark LS Ignition Module

SmartSpark Ignition Module – Core Control for All LS-Based SmartSpark Systems Part Number 119001 The SmartSpark Ignition Module (PN 119001) is the core of the SmartSpark Carb LS Engine Ignition System . It supports both 24x and 58x LS engines , providing powerful and precise ignition control for high-performance and racing applications. This compact, waterproof module works seamlessly with SmartSpark Ignition Harnesses (PN 119002, 119005, or 119006) and connects to your PC via the OPTIONAL USB interface cable (PN 102004) for full programming and data logging capabilities. ⚙️ Key Features of the SmartSpark Ignition Module Plug-and-play design for quick, hassle-free installation Fully customizable or preset ignition timing options Individual cylinder timing control Three-step adjustable RPM limiter (3,000–9,900 RPM) Startup timing retard (adjustable up to 10°) Three external timing retard inputs Optional real-time timing adjustment with RTD-1 accessory Real-time data logging and analysis via USB Compact and sealed waterproof housing (6″ L x 3.5″ W x 0.75″ H) Heavy-duty connectors ensure long-term reliability What’s Included SmartSpark Ignition Module (PN 119001) Compatible with all LS ignition harnesses: 119002 for 24x LS engines 119005 or 119006 for 58x LS engines Optional: USB Interface Cable (PN 102004 – included in kits) Optional: RTD-1 Timing Adjustment Dial (PN 102005) ✅ Works with All SmartSpark LS Kits Kit Type Includes PN 119001? Supported Engines Base Kit (PN 119007) ✅ Yes 24x & 58x Stage II Kits (e.g., 119072, 119075, 119076) ✅ Yes 24x or 58x MAX Kits (e.g., 119172, 119175, 119176) ✅ Yes 24x or 58x Pro Tip For advanced tuning and diagnostics, connect your module to a Windows PC using the SmartSpark PC Link software . This allows you to adjust ignition maps, view real-time data, and save or load custom configurations.
