Part # 19312
$3,705.61
Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

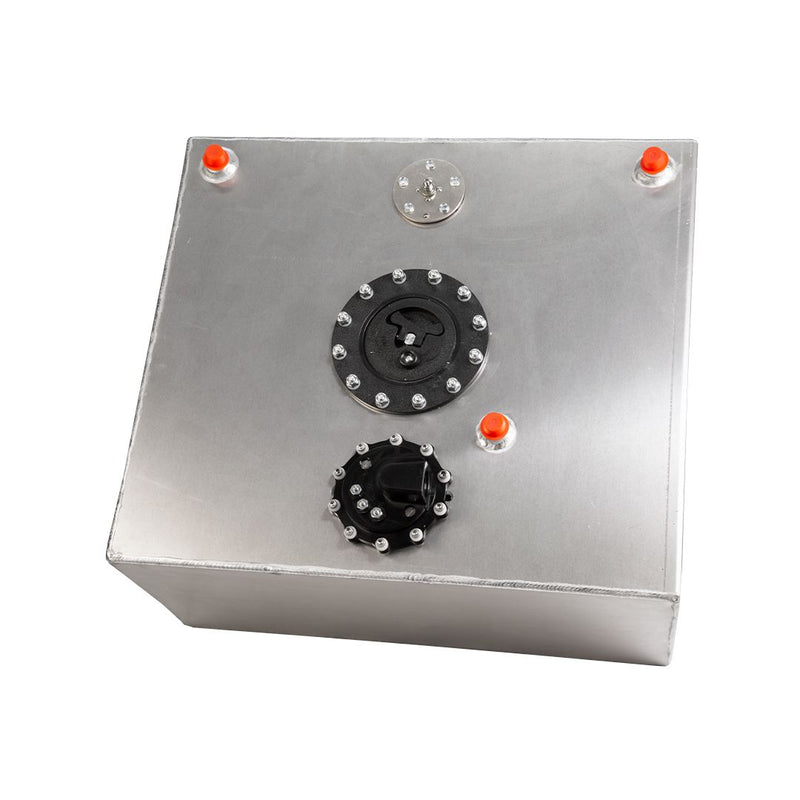

Fits: Brushless 90° 10.0 GPM 15-Gal Stealth Fuel Cell with True Variable Speed Controller. Baffled to control slosh and includes ORB-10 outlet, AN-08 return and AN-08 - Rollover protected vent. 90° pump outlet and remote TVS for low profile.
In the box: Fuel Cap, Fuel Pump, Lock Ring, O-Ring, Sending Unit
| Attached Sump | No |
| Baffled | Yes |
| Capacity | 15 |
| Color | Natural |
| EmissionFullDES | 3 - This Product is ILLEGAL for Street or Off Highway use and is only intended for Closed Course Competition use, Except |
| Filler Neck Attached | Yes |
| Finish | Natural |
| Fuel System Compatibility | Carburation & Fuel Injection |
| Fuel Type | Gas |
| Height | 10 |
| Integrated Controller | Yes |
| Length | 18 |
| Material | Aluminum |
| Maximum Flow Rating | 10.0 GPM |
| Maximum Pressure | 150 |
| Motor Style | Brushless |
| Negative Ground | Yes |
| Outlet Outside Diameter | ORB-10 |
| Outlet Type | Female |
| Pulse Width Modulation Compatible | No |
| Pump Design | Spur Gear |
| Return Fitting Size | ORB-08 |
| Sender Ohm Range | 0-90 |
| Series | Stealth Fuel Cell |
| Terminal Gender | Male |
| Terminal Quantity | 3 |
| Terminal Type | Threaded Stud |
| Universal Or Specific Fit | Universal |
| Voltage | 12-16V |
| Width | 20 |
| Wire Quantity | 3 |
