Part # 18842
$1,148.64

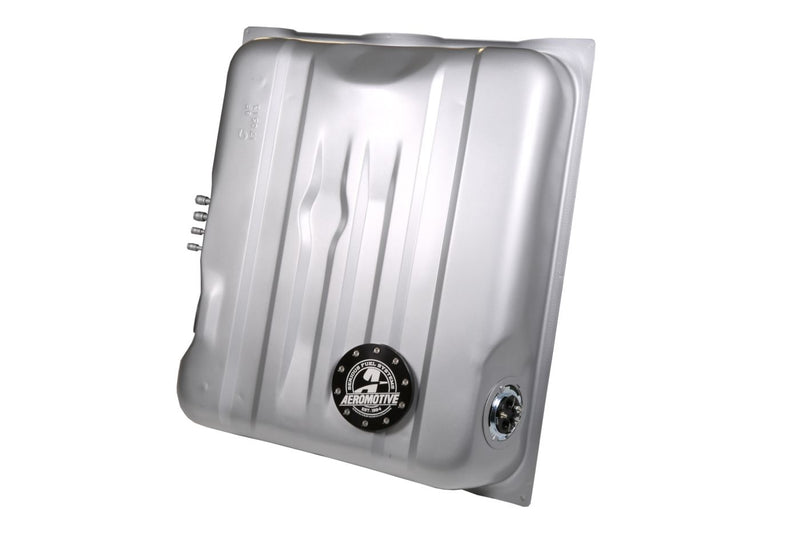

525 LPH 70-74 Challenger Hellcat Fuel Tank.
Fits: Fuel Tank, 525lph, 70-74 Challenger Hellcat Swap.
Installation note: 525 LPH 70-74 Challenger Hellcat Fuel Tank
In the box: Fuel Pump, Lock Ring, O-Ring, Sending Unit
| Attached Sump | No |
| Baffled | Yes |
| Capacity | 18 GAL |
| Color | Silver |
| Filler Neck Attached | Yes |
| Finish | Powder Coated |
| Fuel System Compatibility | Carburation & Fuel Injection |
| Fuel Type | Gas |
| Height | OEM IN |
| Integrated Controller | No |
| Length | OEM IN |
| Material | Steel |
| Maximum Current Draw | 17A @ 40PSI |
| Maximum Flow Rating | 525LPH |
| Maximum Pressure | 105PSI |
| Motor Style | Brushed |
| Negative Ground | Yes |
| Outlet Outside Diameter | ORB-06 |
| Outlet Type | Female |
| Pressure Range | 3-80 |
| Pulse Width Modulation Compatible | Yes |
| Pump Design | Turbine Impeller |
| Return Fitting Size | ORB-06 |
| Sender Ohm Range | 73-10 |
| Series | Gen II Stealth |
| Terminal Gender | Male |
| Terminal Quantity | 3 |
| Terminal Type | Threaded Stud |
| Universal Or Specific Fit | Specific |
| Voltage | 12-16V |
| Width | OEM IN |
