Part # 18309
$1,062.43
Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.
Fits: Fuel Pump, Universal, Phantom, Dual 340, 6-10" Depth .

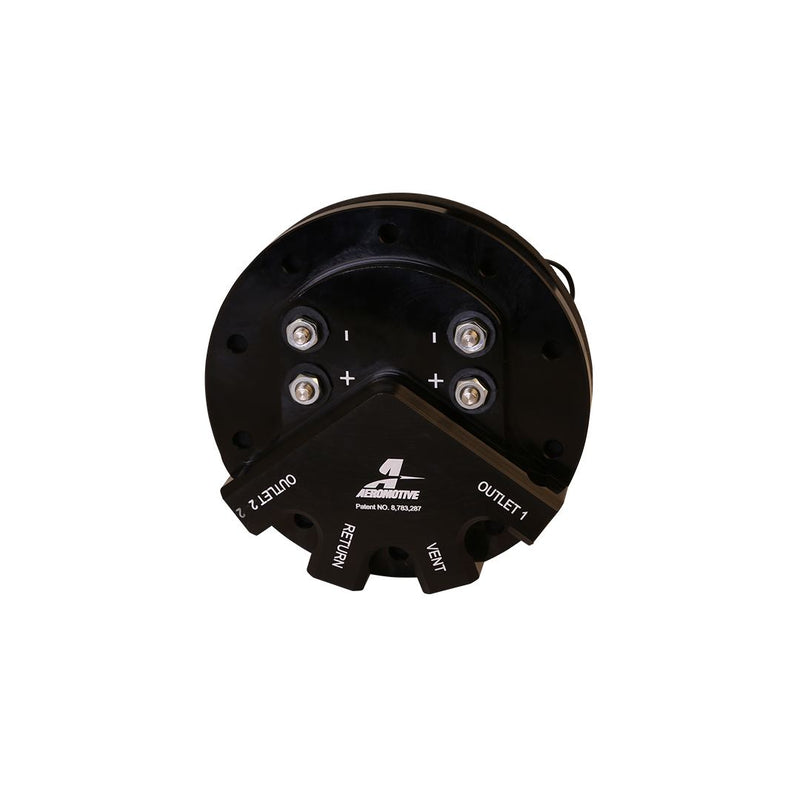

Installation note: Dual 340 Phantom Fuel Pump; Two 340lph Stealth Fuel Pumps Supports 1400 HP EFI - Forced Induction, 1700 HP EFI - N/A, 1700 HP Carbureted - Forced Induction, 2000 HP Carbureted - N/A. Black anodized top hat, (4) ORB-06 Ports, (1) Return, (1) Vent
In the box: Gasket Or Seal, Mounting Bracket, Mounting Hardware, Seal And Lock Ring, Strainer
| Carb HP on E85 | 1400 |
| Carb HP on Gas | 2000 |
| EFI HP on E85 | 1190 |
| EFI HP on Gas | 1700 |
| Fuel Delivery Type | Carburation & Fuel Injection |
| Fuel Type | Gas |
| Integrated Controller | No |
| Internal Or External | Internnal |
| Maximum Current Draw | 13 / each |
| Maximum Flow Rating | 340 x 2 |
| Maximum Pressure | 40 |
| Negative Ground | Yes |
| Outlet Outside Diameter | AN-06 X2 |
| Outlet Type | Female Thread |
| Pulse Width Modulation Compatible | No |
| Pump Design | turbine impeller |
| Series | Phantom |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Threaded Stud |
| Universal Or Specific Fit | Universal |
| Voltage | 12 |
