Part # 18307
$1,269.95
Aeromotive Inc. is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

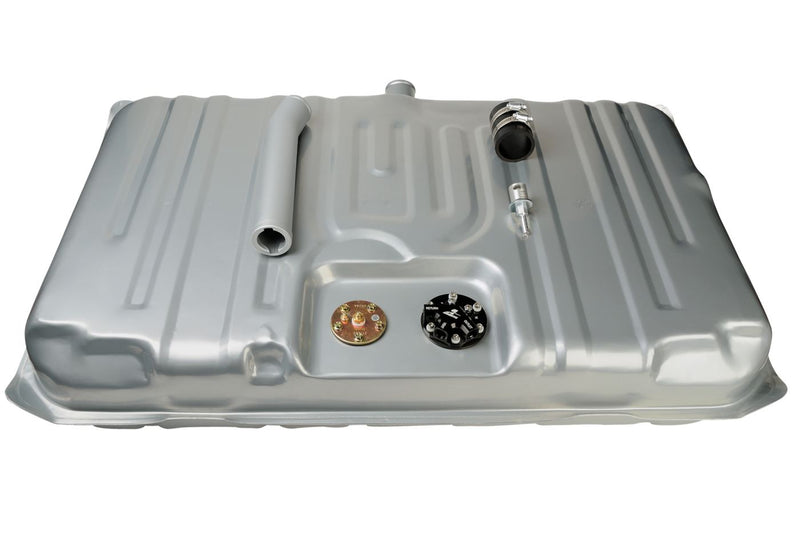

Fits: Fuel Tank, 340 Stealth, 71-72 GTO & LeMans.
Installation note: 340 Stealth Fuel Tank; Fuel Tank, 340 Stealth, 71-72 GTO and LeMans Includes innovative baffling/tray system to control fuel slosh, and a preinstalled GM 0-90 ohm sending unit.
In the box: Fuel Pump, Lock Ring, O-Ring, Sending Unit
| Attached Sump | No |
| Baffled | Yes |
| Capacity | 20 GAL |
| Color | Silver |
| Filler Neck Attached | Yes |
| Filler Neck Length | 13.83 IN |
| Finish | Powder Coated |
| Fuel System Compatibility | Carburation & Fuel Injection |
| Fuel Type | Gas |
| Height | 8 IN |
| Integrated Controller | No |
| Length | 41 IN |
| Material | Steel |
| Maximum Current Draw | 13A @ 40PSI |
| Maximum Flow Rating | 340LPH |
| Maximum Pressure | 105PSI |
| Motor Style | Brushed |
| Negative Ground | Yes |
| Outlet Outside Diameter | ORB-06 |
| Outlet Type | Female |
| Pressure Range | 3-65 |
| Pulse Width Modulation Compatible | Yes |
| Pump Design | Turbine Impeller |
| Return Fitting Size | ORB-06 |
| Sender Ohm Range | 0-90 |
| Series | Stealth |
| Terminal Gender | Male |
| Terminal Quantity | 3 |
| Terminal Type | Threaded Stud |
| Universal Or Specific Fit | Specific |
| Voltage | 12-16V |
| Width | 27 IN |
