Aeromotive EFI Fuel System Kit - 5.0 GPM Brushless Spur Gear Pump

A complete external EFI fuel system built around Aeromotive’s 5.0 GPM brushless spur-gear pump, supplied with the Extreme Flow 2-port EFI regulator and Aeromotive in-line filtration — pump, filtering and pressure control arriving matched and ready to plumb.

What it supports, on Aeromotive’s ratings for this pump:

• Gas: up to 3,400 FWHP naturally aspirated, 2,600 FWHP on forced induction
• E85: up to 2,380 FWHP naturally aspirated, 1,820 FWHP on forced induction
• Methanol: up to 1,190 FWHP naturally aspirated, 910 FWHP on forced induction
• Carbureted gas runs higher again — up to 3,600 FWHP naturally aspirated

The pump. An integral spur-gear pumping mechanism with the brushless controller mounted externally, for cooler fuel and a cleaner install. 90 psi continuous and 150 psi peak including boost, through an ORB-12 inlet and ORB-10 outlet. Lighter and drawing less current at EFI pressures than the traditional Pro-Series pump, with extended service life on methanol and ethanol. It runs on a straight 12–16 VDC supply; on a 16-volt charging system, stepping down to normal 12-volt levels keeps it in its designed range.

The regulator is the Extreme Flow 2-port EFI unit, P/N 13132: a compact two-port body with dual ORB-10 inlet and outlet ports plus an ORB-10 return, a 0.500 in high-flow valve and seat, and dual springs — 30–75 psi base pressure as installed, 75–120 psi with the included high-pressure spring — referencing vacuum and boost 1:1.

Filtration uses Aeromotive in-line filters, including the 10-micron microglass element with ORB-12 ports (P/N 12341). Pleated for maximum surface area, which is what keeps pressure drop low at these flow rates.

Ships at 11.05 lb in a 12.5 × 12.5 × 12.5 in carton. Made in the USA. UPC 684980013009.

Specifications

• Type: System/Kit
• Shipping weight: 11.05 lb
• Package size: 12.5 × 12.5 × 12.5 in
• UPC: 684980013009
• Country of origin: United States

This Product is LEGAL for Closed Course Competition use or Pre-Emissions Controlled Vehicles ONLY. It is Not Legal for use on any Emissions Controlled Vehicle for Street or Off Highway use.

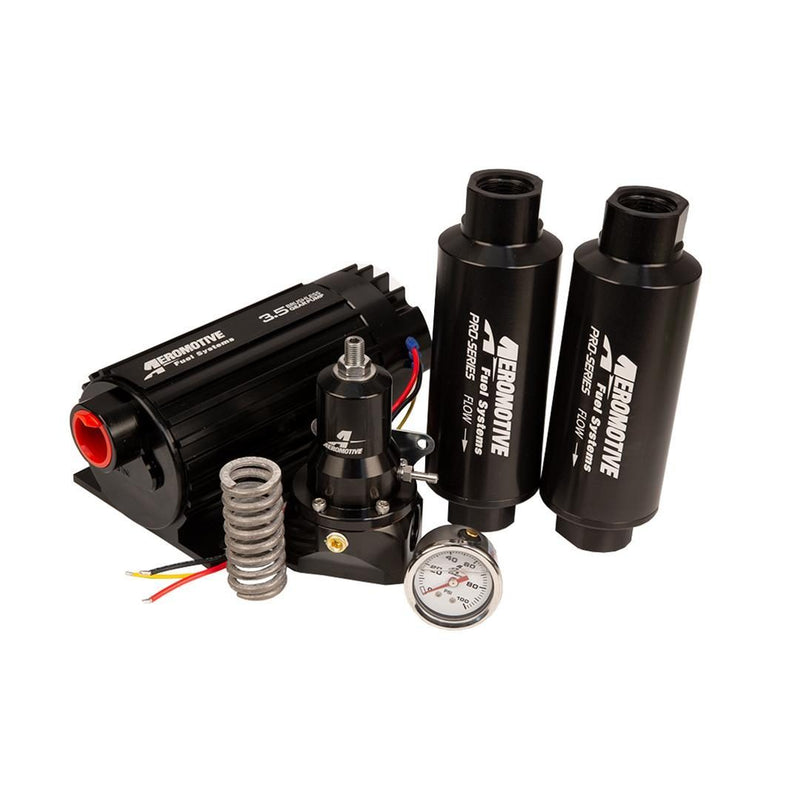

The photograph shows this EFI kit built with the 3.5 GPM pump. This kit is supplied with the 5.0 GPM pump; the rest of the kit, including the EFI regulator, is identical.
