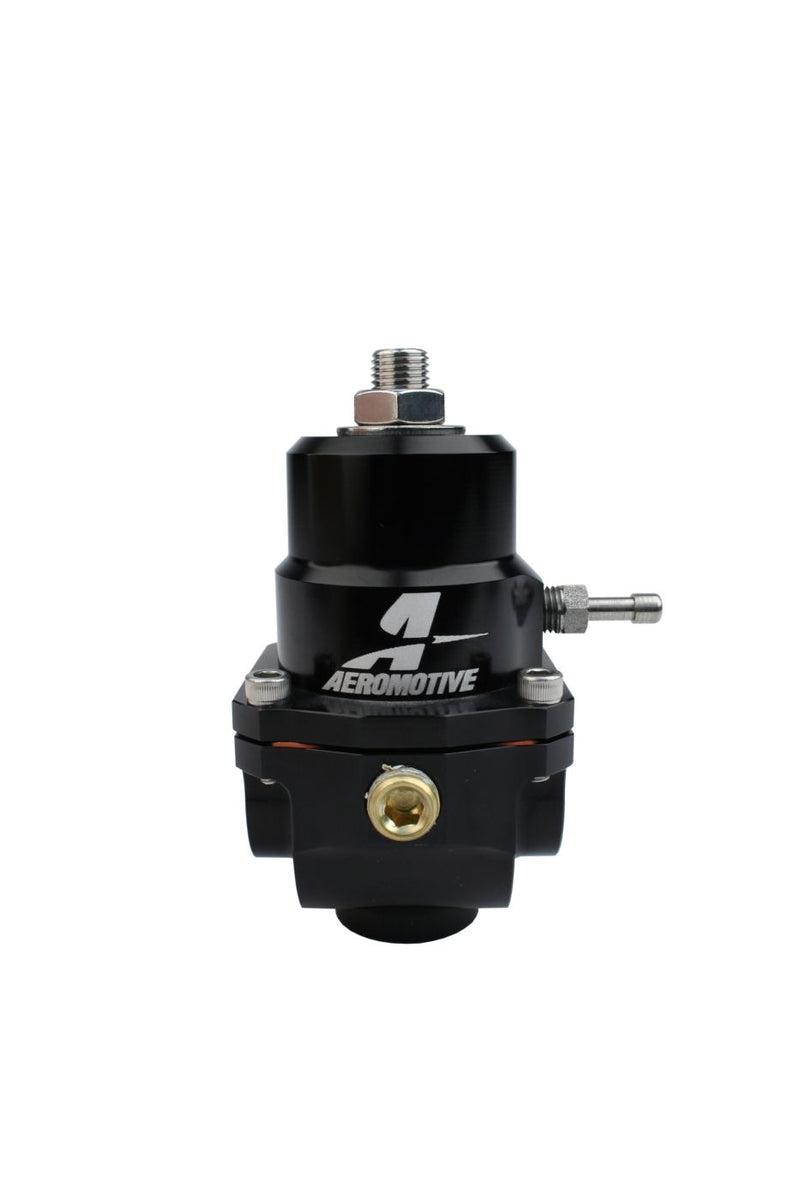

X1 Series - Carb Standard Bypass Regulator

Replace original X1 Series regulator internals with the conversion kit of your choice (Part #'s 13013, 13014, and 13015) and you have a regulator with vastly different characteristics. While versatility is one of the X1's greatest assets, it is far from the only new design feature. Utilizing larger (3) -8AN ORB inlet/outlet/return ports to accommodate increased flow, at the same time Aeromotive reduced overall size and the weight by 33% (compared to Aeromotive 13109 regulator). The new X1 design eliminates the compromise common to other convertible regulator designs, with the optimization of all internal components including the diaphragm/poppet, spring and bypass seat, the X1 delivers all of the performance and features you expect from an application specific bypass regulator, regardless of what you decide to do with you r induction system tomorrow. Above and beyond the expected performance, you still have the amenities like a 1/8 NPT gauge port and 1:1 ratio boost reference port for forced induction applications. Base fuel pressure adjustable from 35-75 PSI. Vacuum/boost reference capability. 1:1 rising rate for forced induction engines. Gasoline, ethanol, and alcohol compatible. (2) ORB-08 inlet/outlet ports on the sides. (1) ORB-08 return port on the bottom. (1) 1/8 NPT Gauge port with plug. 1/16 NPT Boost port with 5/32 hose barb. 0.188 bypass with matching spring and poppet. Handles up to 150 GPH with AN-08 return line. Suitable for any Aeromotive pump up to A1000. Mounting bracket included.

Fits: Regulator, X1 Adjustable, 3-15psi, .313 Valve, (2)-08inlets, -08 return .

Installation note: X1 regulator; Carb to EFI pressures, N/A or forced induction, X1 is designed to span entire range of applications providing dependable fuel pressure regulation. 3-15psi (Works well with 11137 200lph up to 11104 Eliminator)

In the box: Mounting Bracket

Specifications
