Part # 13301
$243.23

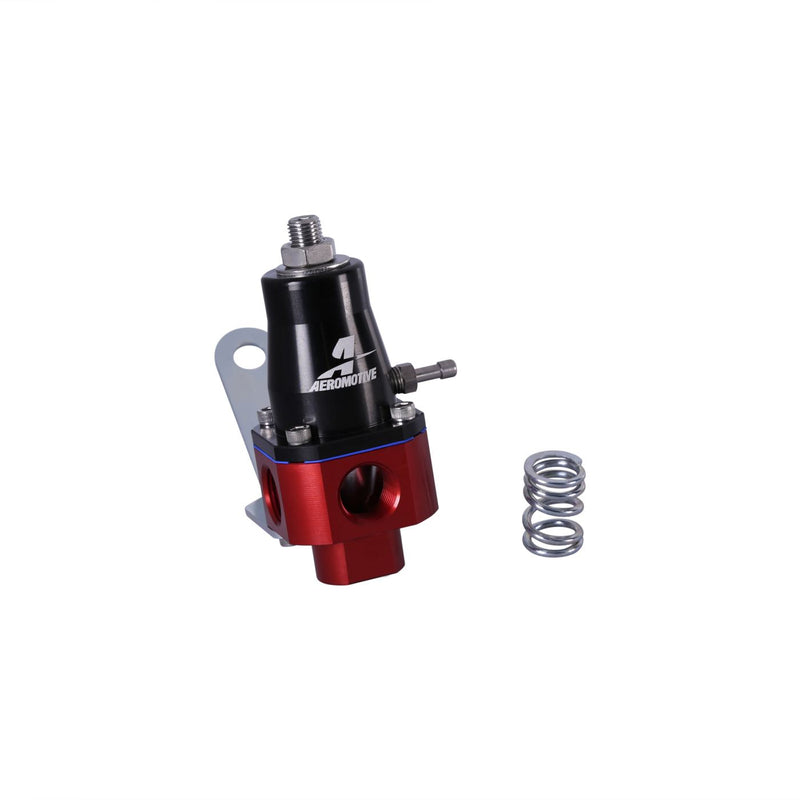

A dual purpose, universal regulator for EFI or Carbureted and street or strip applications. Base pressure adjustable from 3 to 20 PSI with standard spring, (installed) or from 20 to 60 PSI with high pressure spring (included). Offers the full flow and rock steady fuel pressure that only a dynamic, Aeromotive bypass regulator provides. Capable of regulating any fuel pump between 100 and 250 GPH. Fuel pressure rises on a 1:1 ratio when referencing boost. All ports are 3/8' NPT, with one inlet and three outlets on the main body and one return port on the bottom. Bypass design provides the ultimate, dynamic fuel pressure control. Note: Requires a return line to be installed from the bottom of the regulator to the top of the tank.
Fits: Universal Bypass Regulator - 3-Port 3/8? NPT.
Installation note: universal bypass regulator; for EFI and carbureted applications; for street and strip applications; adjustable from 3-20 PSI.
In the box: Mounting Bracket
| Adjustable | Yes |
| Color | Black/Red |
| Fuel Delivery Type | Carburation or Fuelinjection |
| Gauge Port | Yes |
| Inlet Gender | Female |
| Inlet Gender.1 | Female |
| Inlet Port Diameter | 3/8 |
| Marine Approved | No |
| Maximum Pressure | 60 |
| Minimum Pressure | 2 |
| Outlet Port Diameter | 3/8 |
| Port Quantity | 4 |
| Pressure Range | 2-60 |
| Return Port Diameter | 3/8 |
| Return Port Gender | Female |
| Vacuum/Boost Port | Yes |
