Part # 13207
$381.04

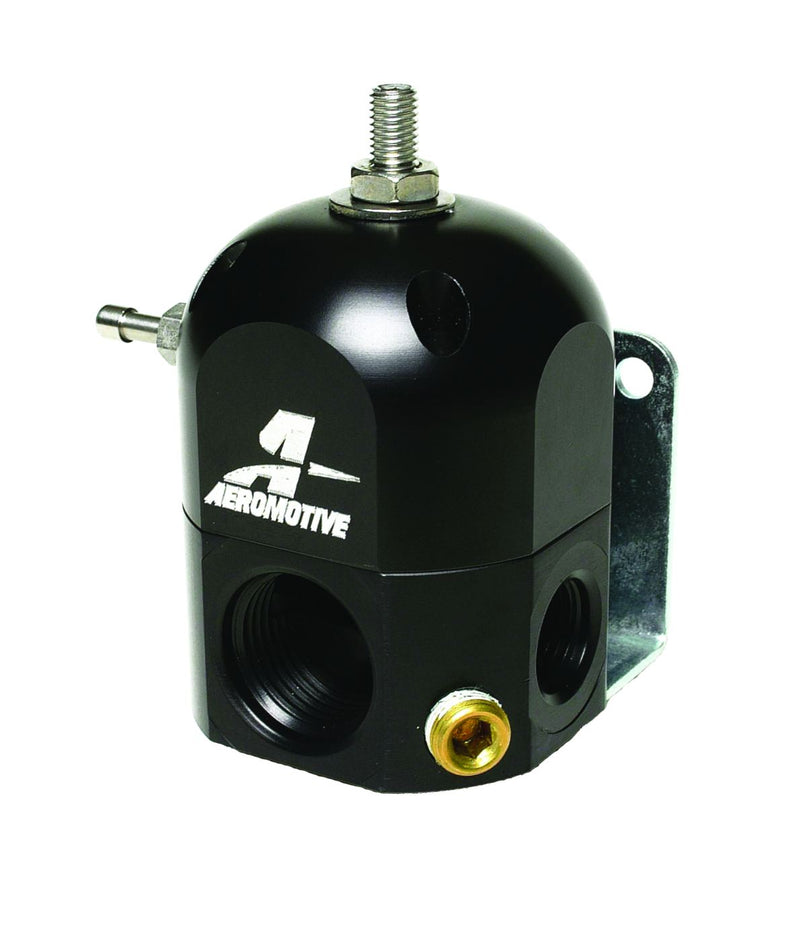

Full volume at perfect pressure, the A1000 Regulator was designed for use with our Marine A1000 Fuel Pump or any similar style pump. This regulator is perfect for naturally aspirated or blow-through turbo-charged or supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-8 return port. (2) O RB-6 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost.
Fits: Marine Carb 2-port Bypass Regulator.
Installation note: Marine Carb 2-port bypass regulator; Base fuel pressure adjustable from 3-15 PSI (1) ORB-10 inlet port and (1) ORB-8 return port. (2) ORB-6 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost.
In the box: Mounting Bracket
| Adjustable | Yes |
| Color | Black |
| Fuel Delivery Type | Carburation |
| Gauge Port | Yes |
| Inlet Gender | Female |
| Inlet Gender.1 | Female |
| Inlet Port Diameter | ORB-10 |
| Marine Approved | Yes |
| Maximum Pressure | 15 |
| Minimum Pressure | 5 |
| Outlet Port Diameter | ORB-06 |
| Port Quantity | 3 |
| Pressure Range | 5-15 |
| Return Port Diameter | ORB-08 |
| Return Port Gender | Female |
| Vacuum/Boost Port | Yes |
