Part # 13137
$323.90

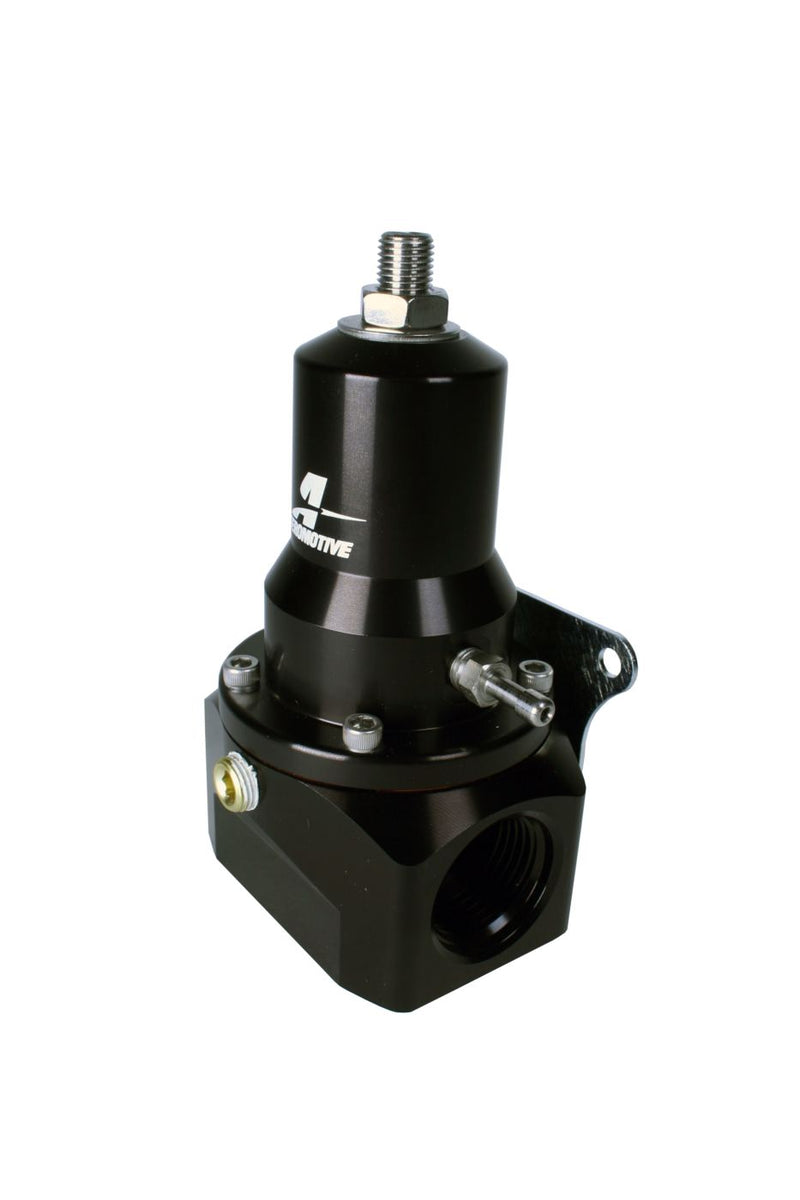

Our ALL-NEW Extreme-Flow EFI Regulator now comes with -12 ports! It's designed for use with Belt or Hex Drive Fuel Pumps. Compact, 2-Port Body with dual ORB-12 inlet/outlet ports and one ORB-12 return port. 0.500 high-flow valve/seat, able to handle 7-32 GPM Fuel Pumps. Dual springs expand the range of operating pressure while maintaining a low profile regulator with reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High Pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI.
Fits: Pro Mod EFI Gear Pump Regulator, 30-120 PSI, .500 Valve, (2) -12 inlets, (1) -12 return.
Installation note: Adjustable Regulator, 30-120 PSI, (2) -12 inlets, -12 return
In the box: Mounting Bracket
| Adjustable | Yes |
| Color | Black |
| Fuel Delivery Type | Fuel Injection |
| Gauge Port | Yes |
| Inlet Gender | Female |
| Inlet Gender.1 | Female |
| Inlet Port Diameter | ORB-12 |
| Marine Approved | No |
| Maximum Pressure | 120 |
| Minimum Pressure | 30 |
| Outlet Port Diameter | ORB-10 |
| Port Quantity | 2 |
| Pressure Range | 30-120 |
| Return Port Diameter | ORB-10 |
| Return Port Gender | Female |
| Vacuum/Boost Port | Yes |
