Part # 13133
$323.90

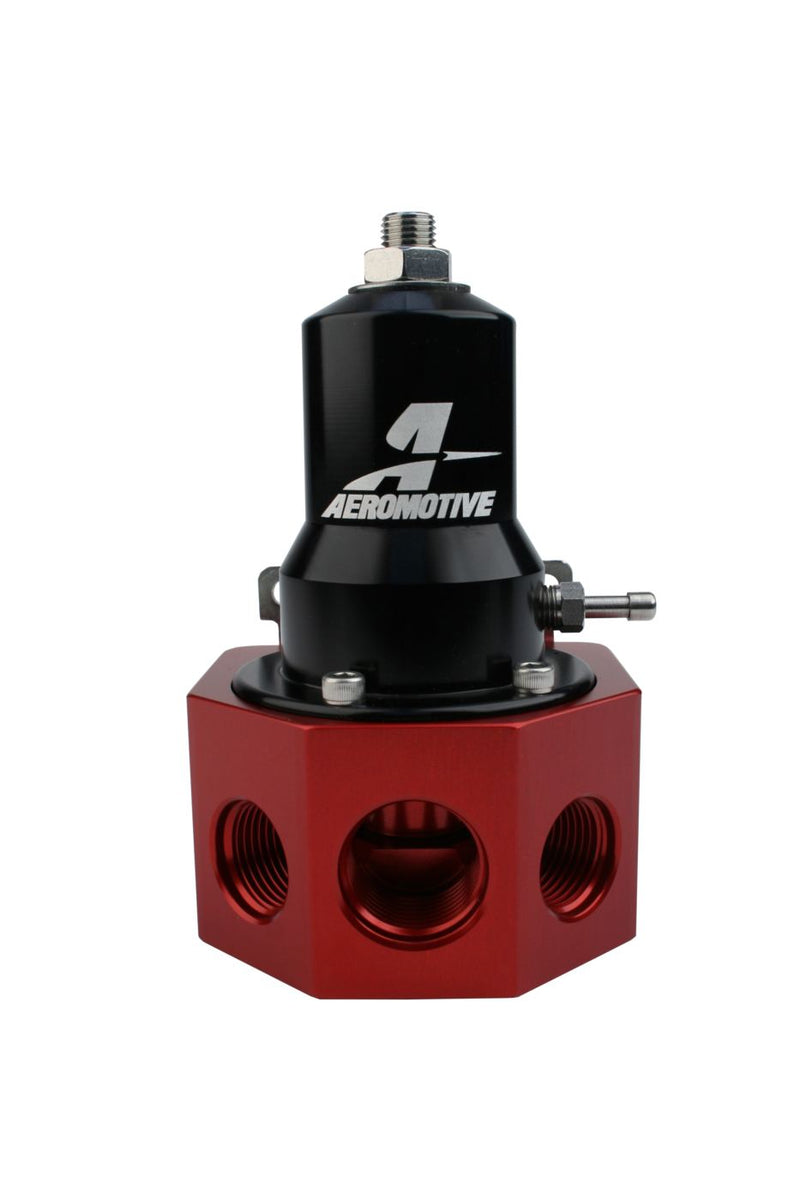

Extreme Flow EFI Regulator Designed for use with Belt or Hex Drive Fuel Pumps. Expanded 5-port body with one AN-10 inlet port plus four AN-08 outlet ports and one AN-10 return port. 0.500 High Flow Valve/Seat, able to handle 7-26 GPM Fuel Pump. Dual Springs expand operating pressure range while maintaining a low profile and reduced weight. Standard spring (installed) supports 30-75 PSI base fuel pressure. High pressure spring (included) supports 75-120 PSI base fuel pressure. Supports vacuum and boost reference on a 1:1 ratio with PSI.
Fits: Pro Mod EFI Gear Pump Regulator, 30-120 psi, .500 Valve, 4x AN-08 & AN-10 inlets, AN-10 Bypass.
Installation note: regulator; Fuel Pressure Regulator, 30-120 psi, .500 Valve, 4x AN-08 and AN-10 inlets, AN-10 Bypass
In the box: Mounting Bracket
| Adjustable | Yes |
| Color | Black/Red |
| Fuel Delivery Type | Fuel Injection |
| Gauge Port | Yes |
| Inlet Gender | Female |
| Inlet Gender.1 | Female |
| Inlet Port Diameter | ORB-10 |
| Marine Approved | No |
| Maximum Pressure | 120 |
| Minimum Pressure | 30 |
| Outlet Port Diameter | ORB-08 |
| Port Quantity | 5 |
| Pressure Range | 30-120 |
| Return Port Diameter | ORB-10 |
| Return Port Gender | Female |
| Vacuum/Boost Port | Yes |
