Part # 13113
$439.20

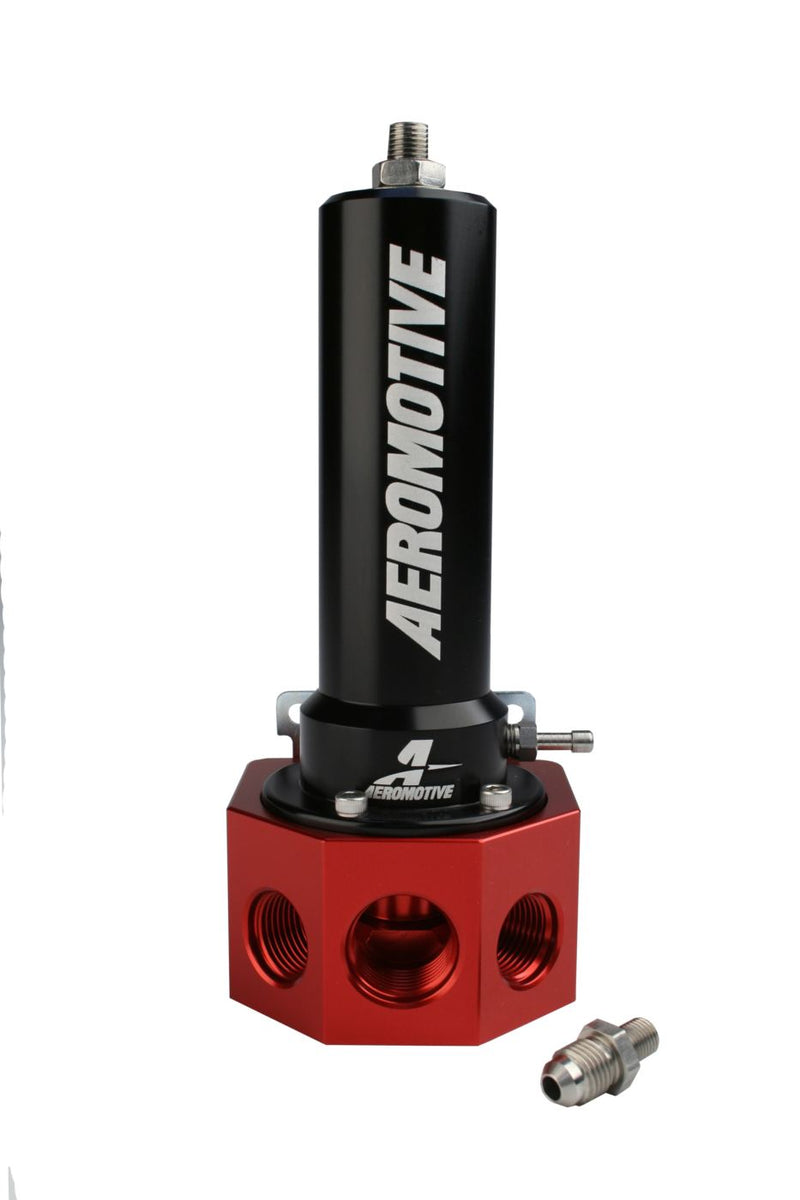

Ultra-High Flow EFI Regulator, adjustable from 40-100 PSI. Engineered for our Belt-Drive and Hex-Drive Fuel Pumps, the Belt Drive EFI Regulator is suitable for engines making up to 4,000 HP on gasoline and is compatible with gasoline and methanol. Perfect for any mechanically driven EFI fuel pump developing over 200 GPH at EFI pressure. Base pressure adjustable from 40-100 PSI. References Vacuum/Boost on a 1:1 ratio. Includes two boost line adapters, one barbed for rubber hose, the other for AN-04 braided line. (Prevents blow-off in high boost applications). Ports available for nitrous fuel supply, pressure gauges and transducers. (4) ORB-08 inlet ports, (1) ORB-10 inlet port and (1) ORB-10 return port.
Fits: Single Spring Belt/Hex Drive EFI Regulator, 40-100 psi.
Installation note: Belt/Hex Drive EFI regulator; adjustable from 40-100 PSI; suitable for engines making up to 4000 HP; gas and alcohol compatable.
In the box: Mounting Bracket
| Adjustable | Yes |
| Color | Black/Red |
| Fuel Delivery Type | Fuel Injection |
| Gauge Port | Yes |
| Inlet Gender | Female |
| Inlet Gender.1 | Female |
| Inlet Port Diameter | ORB-10 |
| Marine Approved | No |
| Maximum Pressure | 100 |
| Minimum Pressure | 40 |
| Outlet Port Diameter | ORB-08 |
| Port Quantity | 5 |
| Pressure Range | 40-100 |
| Return Port Diameter | ORB-10 |
| Return Port Gender | Female |
| Vacuum/Boost Port | Yes |
