Product • Support • Tuning
Part # 13109
$243.23

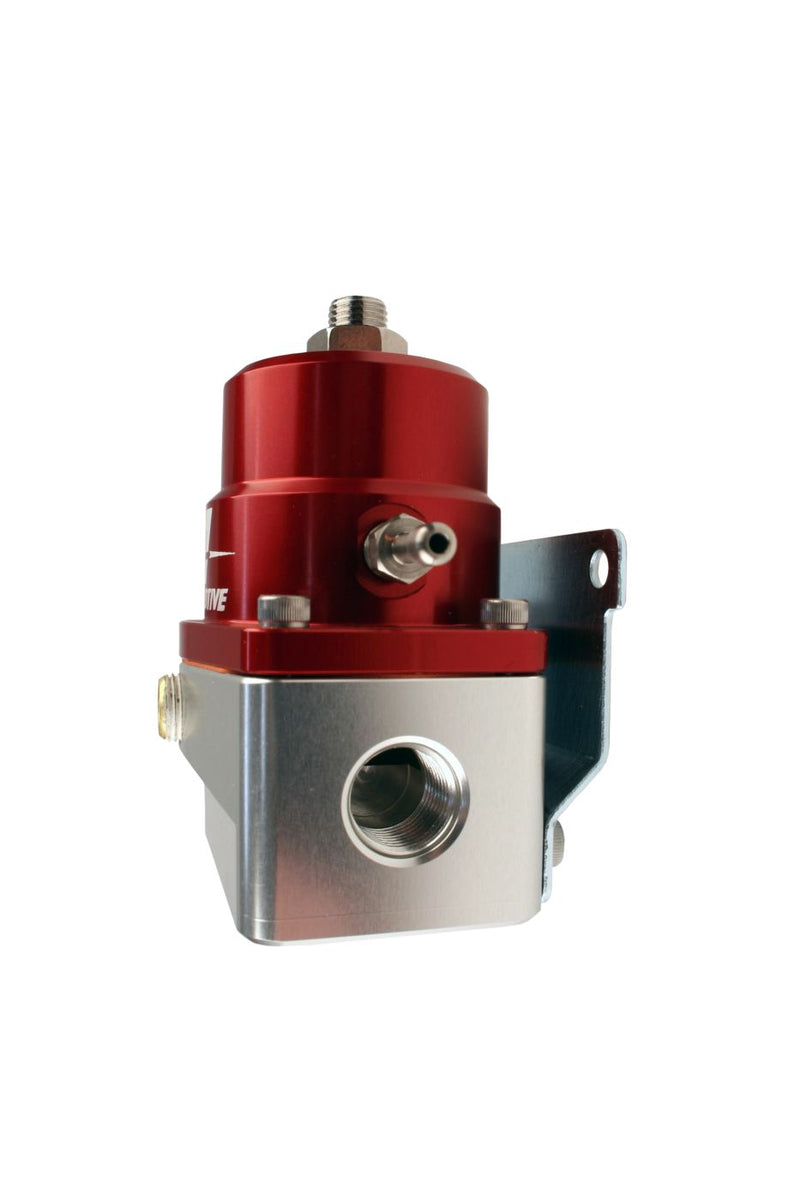

Performance EFI regulator designed for medium to high horsepower applications. This regulators features Aeromotive's high-flow design, superb pressure control and legendary durability. On the street and at the track, this pressure regulator has logged more miles, laps and passes than any other performance EFI regulator in the world! Base pressure adjustable from 40-75 PSI. Gasoline and alcohol compatible. Fuel pressure rises on a 1:1 ratio with boost. 1/8 NPT gauge port. P/N 13109 provides (2) ORB-06 inlet ports and (1) ORB-06 return port.
Fits: A1000-6 Injected Bypass Regulator, Adjustable, EFI, (2) -6 inlets, (1) -6 return.
Installation note: A1000 EFI bypass regulator; adjustable from 40-75 PSI.
In the box: Mounting Bracket
| Adjustable | Yes |
| Color | Red/Silver |
| Fuel Delivery Type | Fuel Injection |
| Gauge Port | Yes |
| Inlet Gender | Female |
| Inlet Gender.1 | Female |
| Inlet Port Diameter | ORB-06 |
| Marine Approved | No |
| Maximum Pressure | 75 |
| Minimum Pressure | 40 |
| Outlet Port Diameter | ORB-06 |
| Port Quantity | 2 |
| Pressure Range | 40-75 |
| Return Port Diameter | ORB-06 |
| Return Port Gender | Female |
| Vacuum/Boost Port | Yes |
