Part # 13105
$335.44

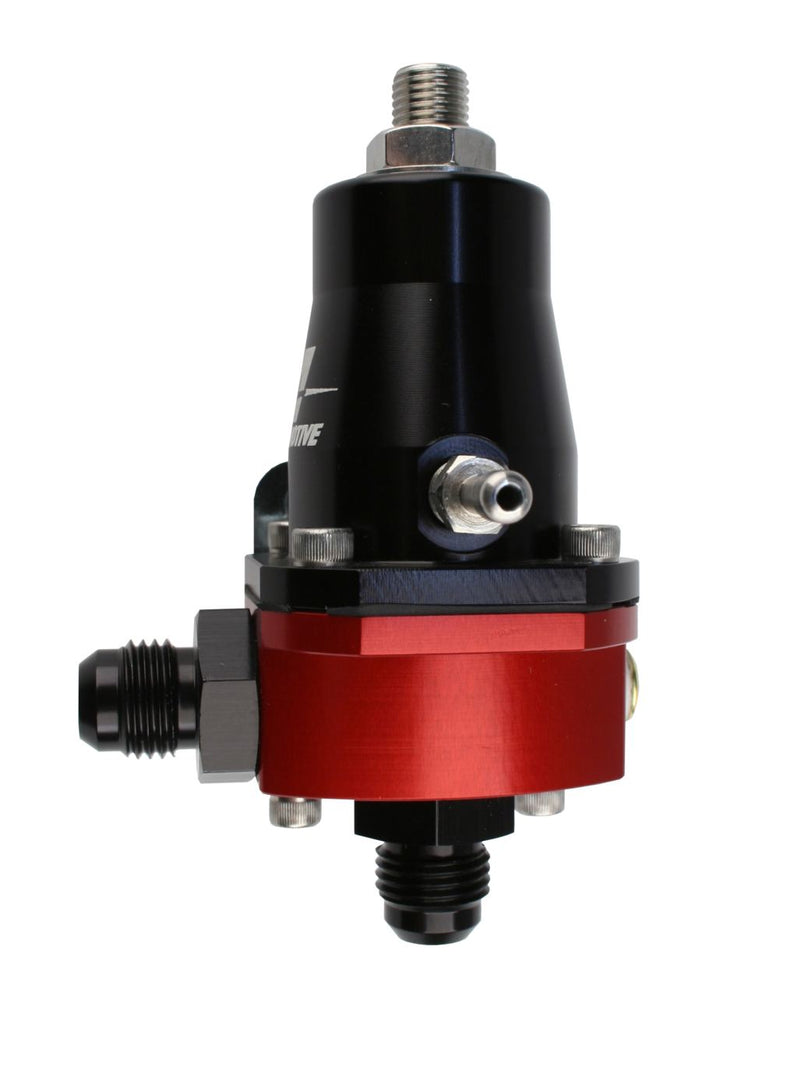

Big performance in a small package. The Compact EFI Regulator is designed for applications producing up to 1,000 HP where space is at a premium. Ideal for EFI fuel delivery systems that are limited to one regulator inlet port. Adjustable from 30-70 PSI. Equipped with removable AN-6 male fitting s for inlet and outlet ports, eliminates the need to buy additional fittings and O-rings. Dedicated, 1/8' NPT gauge port located opposite the side inlet. Fuel pressure rises on a 1:1 ratio when referencing boost.
Fits: Compact EFI Regulator, Billet, Adjustable, EFI, (1) AN-6 male inlet and return.
Installation note: compact EFI regulator; adjustable from 30-70 PSI; designed for applications producing up to 1000 HP
In the box: Mounting Bracket
| Adjustable | Yes |
| Color | Black/Red |
| Fuel Delivery Type | Fuel Injection |
| Gauge Port | Yes |
| Inlet Gender | Male |
| Inlet Gender.1 | Male |
| Inlet Port Diameter | AN-06 |
| Marine Approved | No |
| Maximum Pressure | 70 |
| Minimum Pressure | 30 |
| Outlet Port Diameter | AN-06 |
| Port Quantity | 2 |
| Pressure Range | 30-70 |
| Vacuum/Boost Port | Yes |
