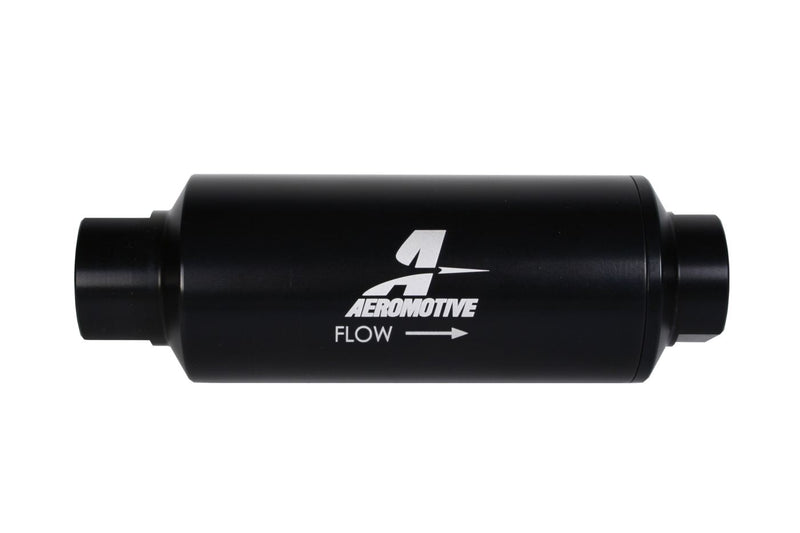

40 Micron Stainless , ORB-12 Black Filter
Aeromotive

40 Micron Stainless , ORB-12 Black Filter

Part # 12343

$358.52

In Stock

AN-12 40-micron stainless steel element, black anodize finish. An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 3,000 plus horsepower applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, and the impeccable machining and finish you've come to expect from all Aeromotive components.

Fits: Filter, In-Line, 40-m Stainless Mesh Element, ORB-12 Port, Black Hard-Coat, Marine, 2-1/2" OD.

Installation note: In-Line filter; Filter, In-Line, Marine, AN-12, 40 Micron Stainless steel element, Black Hardcoat Finish.

In the box: Filter Element, Gasket Or Seal

Specifications

Color Black
End 1 Gender Female
End 2 Gender Female
Filter Element Material Stainless steel mesh
Filter Housing Color Black
Filter Housing Diameter 2.5 IN
Filter Housing Finish Anodized
Filter Housing Length 7 IN
Filter Housing Material Billet Aluminum
Fitting Type AN-12
Flow Rate 2000 lbs/hr
Fuel Filter Style Inline
Fuel Type Gas, Diesel, Alcohol/E85
Housing Material Aluminum
Inlet Attachment Female Thread
Inlet Outside Diameter AN-12
Inlet Quantity 1
Inlet Size AN-12
Length 7 IN
Maximum Fuel Pressure (psi) 70 PSI
Micron Rating 40
Mounting Type External
Outlet Attachment Female Thread
Outlet Outside Diameter AN-12
Outlet Quantity 1
Outlet Size AN-12
Outside Diameter 2.5 IN
Outside Diameter (In) 2.5 IN
Overall Length 7 IN
Overall Length (In) 7 IN
Quantity Sold individually.
Shape Straight
Smallest Particle Filtered 40 microns
Universal Or Specific Fit Universal
