Part # 12335
$231.12
Aeromotive is a true high performance aftermarket manufacturer specializing in fuel delivery and fuel delivery components. Utilizing aerospace tolerances and procedures, three generations of track experience, and a meticulous approach to engineering, Aeromotive Fuel Systems has become the absolute pinnacle of performance fuel delivery.

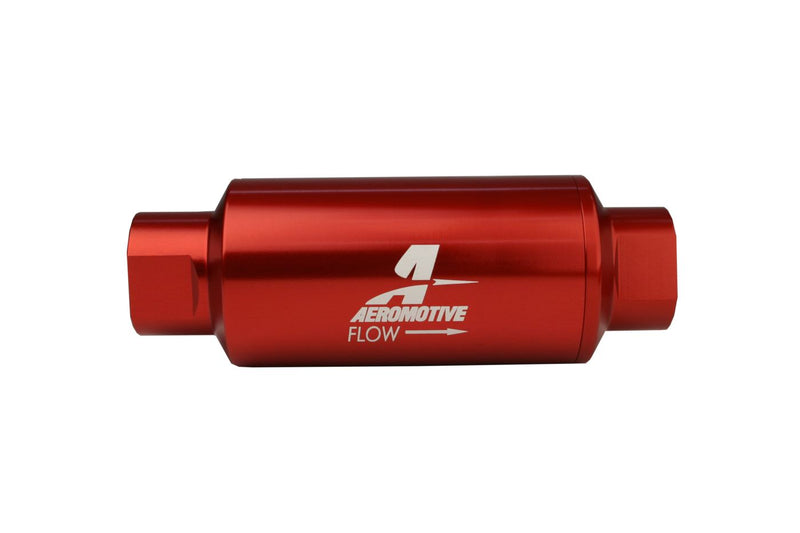

Fits: Filter, In-Line, 40-m Stainless Mesh Element, ORB-10 Port, Bright-Dip Red, 2" OD.
Installation note: in-line fuel filter; red anodized; designed for alcohol-based fuels, including ethanol and methanol; 40-micron stainless steel element; compact size: 5.5" long x 2" diameter
In the box: Filter Element, Gasket Or Seal
| Color | Red |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Filter Element Material | Stainless steel mesh |
| Filter Housing Color | Red |
| Filter Housing Diameter | 2.0 IN |
| Filter Housing Finish | Anodized |
| Filter Housing Length | 5.5 IN |
| Filter Housing Material | Billet Aluminum |
| Fitting Type | AN-10 |
| Flow Rate | 2000 lbs/hr |
| Fuel Filter Style | Inline |
| Fuel Type | Gas, Diesel, Alcohol/E85 |
| Housing Material | Aluminum |
| Inlet Attachment | Female Thread |
| Inlet Outside Diameter | AN-10 |
| Inlet Quantity | 1 |
| Inlet Size | AN-10 |
| Length | 5.5 IN |
| Maximum Fuel Pressure (psi) | 70 PSI |
| Micron Rating | 40 |
| Mounting Type | External |
| Outlet Attachment | Female Thread |
| Outlet Outside Diameter | AN-10 |
| Outlet Quantity | 1 |
| Outlet Size | AN-10 |
| Outside Diameter | 2.0 IN |
| Outside Diameter (In) | 2.0 IN |
| Overall Length | 5.5 IN |
| Overall Length (In) | 5.5 IN |
| Quantity | Sold individually. |
| Shape | Straight |
| Smallest Particle Filtered | 40 microns |
| Universal Or Specific Fit | Universal |
