Part # 12331
$404.63

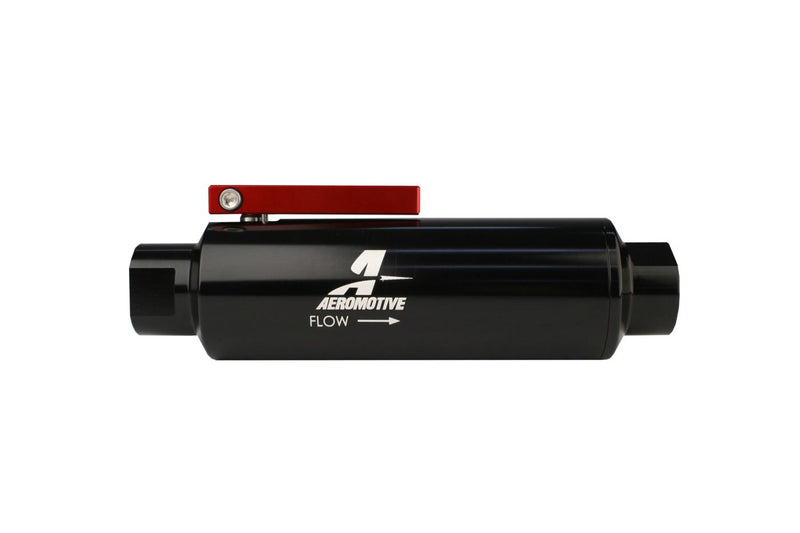

Ever take a fuel bath when changing your filter We have a solution! Cleaning and replacing you filter elements used to mean draining your gas tank. The new Aeromotive Shutoff Valve Fuel Filters allow you to shutoff fuel flow and replace your filter elements with little or no fuel loss. Both feature 100 micron stainless steel elements and are recommended for use between the fuel cell or sumped tank and the fuel pump inlet. ORB-10 ports. 100 micron stainless steel (coarse) cleanable element. Dimensions: 7.38 long x 2 diameter. Proprietary stainless steel shutoff valve design. Type II bright dip black anodized assembly and red anodized billet aluminum shutoff valve handle. Perfect for pre-pump filtration.
Fits: Filter w/ Shutoff Valve, 100-m Stainless Mesh element, In-Line, ORB-10 Port, Bright-Dip Black, 2" OD.
Installation note: shutoff valve fuel filter; proprietary stainless steel shutoff valve design; 100-micron stainless steel element; Type II bright dip black anodized assembly and red anodized billet aluminum shutoff valve handle; 7.375" long x 2" diameter
In the box: Filter Element, Gasket Or Seal
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Filter Element Material | Stainless steel mesh |
| Filter Housing Color | Black |
| Filter Housing Diameter | 2.0 IN |
| Filter Housing Finish | Anodized |
| Filter Housing Length | 5.5 IN |
| Filter Housing Material | Billet Aluminum |
| Fitting Type | AN-10 |
| Flow Rate | 2000 lbs/hr |
| Fuel Filter Style | Inline |
| Fuel Type | Gas, Diesel, Alcohol/E85 |
| Housing Material | Aluminum |
| Inlet Attachment | Female Thread |
| Inlet Outside Diameter | AN-10 |
| Inlet Quantity | 1 |
| Inlet Size | AN-10 |
| Length | 5.5 IN |
| Maximum Fuel Pressure (psi) | 70 PSI |
| Micron Rating | 100 |
| Mounting Type | External |
| Outlet Attachment | Female Thread |
| Outlet Outside Diameter | AN-10 |
| Outlet Quantity | 1 |
| Outlet Size | AN-10 |
| Outside Diameter | 2.0 IN |
| Outside Diameter (In) | 2.0 IN |
| Overall Length | 5.5 IN |
| Overall Length (In) | 5.5 IN |
| Quantity | Sold individually. |
| Shape | Straight |
| Smallest Particle Filtered | 100 microns |
| Universal Or Specific Fit | Universal |
