Part # 12319
$202.03

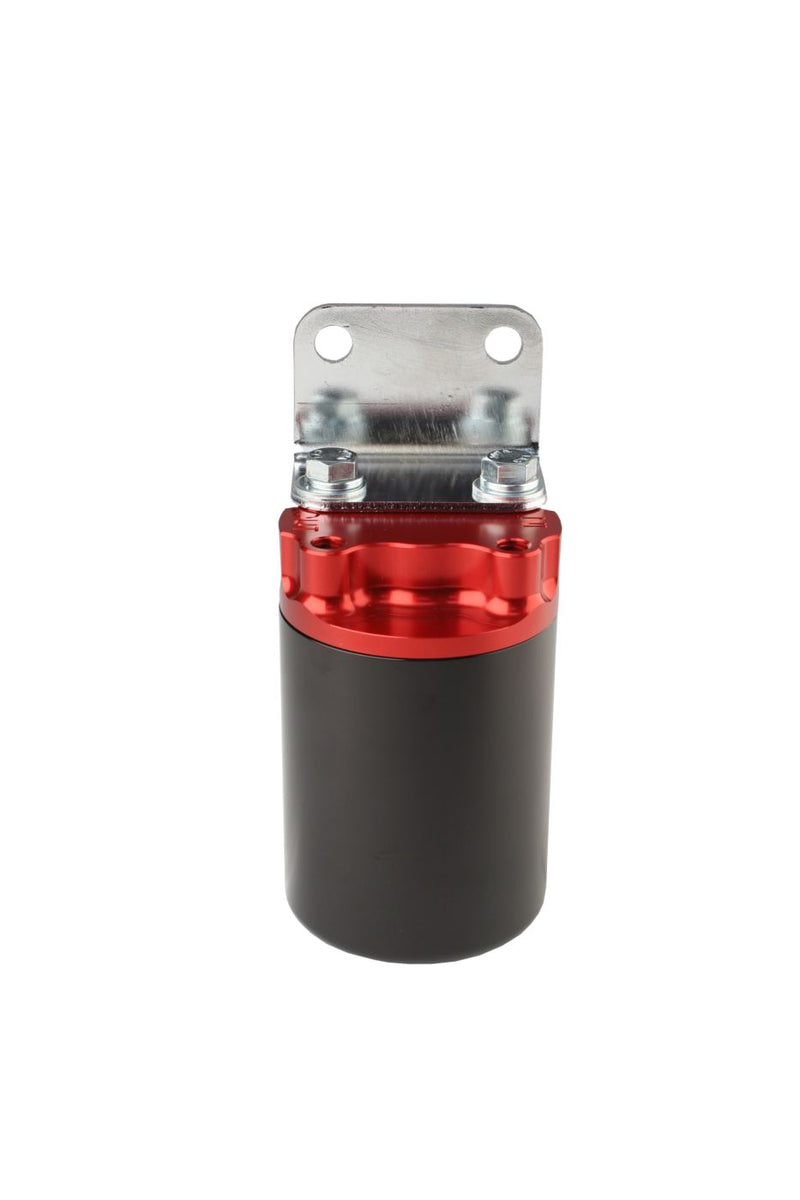

When an in-line fuel filter just won t work, these canister fuel filters are engineered to provide maximum flow with limited pressure drop in a canister style filter. High-flow 100-micron stainless steel element. Flows 1,500 lb/hr with a pressure drop of less than 1 PSI. 3/8 NPT ports. 6.125" tall x 3.75" diameter.
Fits: Filter, Canister, 100-Micron Stainless Mesh Element , 3/8" NPT Port, Bright-Dip Red Top / Black Cup, SS Series.
Installation note: Cannister-style fuel filter; 6.125" tall x 3.75" diameter; 100-micron fabric element. red/black look.
In the box: Filter Element, Gasket Or Seal, Mounting Bracket
| Color | Red |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Filter Element Material | Stainless steel mesh |
| Filter Housing Color | Red |
| Filter Housing Diameter | 3.75 IN |
| Filter Housing Finish | Anodized |
| Filter Housing Length | 6.125 IN |
| Filter Housing Material | Billet Aluminum |
| Fitting Type | 3/8 NPT |
| Flow Rate | 1500 lbs/hr |
| Fuel Filter Style | Canister |
| Fuel Type | Gas, Diesel, Alcohol/E85 |
| Housing Material | Aluminum |
| Inlet Attachment | Female Thread |
| Inlet Outside Diameter | 3/8 NPT |
| Inlet Quantity | 1 |
| Inlet Size | 3/8 NPT |
| Length | 6.125 IN |
| Maximum Fuel Pressure (psi) | 70 PSI |
| Micron Rating | 100 |
| Mounting Type | External |
| Outlet Attachment | Female Thread |
| Outlet Outside Diameter | 3/8 NPT |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 NPT |
| Outside Diameter | 3.75 IN |
| Outside Diameter (In) | 3.75 IN |
| Overall Length | 6.125 IN |
| Overall Length (In) | 6.125 IN |
| Quantity | Sold individually. |
| Shape | Canister |
| Smallest Particle Filtered | 100 microns |
| Universal Or Specific Fit | Universal |
