Part # 12309
$381.04

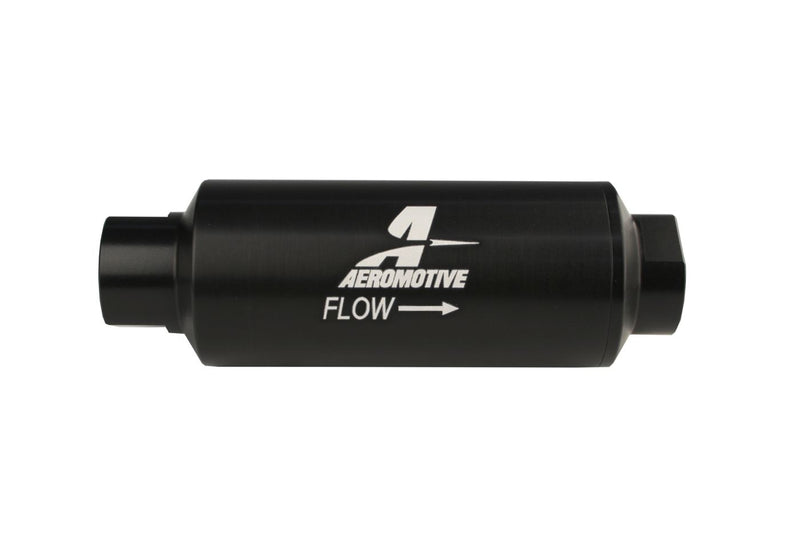

High-flow 100-micron stainless steel (coarse) cleanable element. Flows 2,000 lb/hr with a pressure drop of less than .15 PSI. ORB-12 ports. Fittings available to adapt these filters to AN-12 and -10 line sizes. 7" long x 2.5" diameter.
Fits: Filter, In-Line, 100-m Stainless Mesh Element, ORB-12 Port, Black Hard-Coat, Marine, 2-1/2" OD.
Installation note: Pro Series fuel filter; marine line filter; indestructible electoless nickel finish
In the box: Filter Element, Gasket Or Seal
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Filter Element Material | Stainless steel mesh |
| Filter Housing Color | Black |
| Filter Housing Diameter | 2.5 IN |
| Filter Housing Finish | Anodized |
| Filter Housing Length | 7 IN |
| Filter Housing Material | Billet Aluminum |
| Fitting Type | AN-12 |
| Flow Rate | 2000 lbs/hr |
| Fuel Filter Style | Inline |
| Fuel Type | Gas, Diesel, Alcohol/E85 |
| Housing Material | Aluminum |
| Inlet Attachment | Female Thread |
| Inlet Outside Diameter | AN-12 |
| Inlet Quantity | 1 |
| Inlet Size | AN-12 |
| Length | 7 IN |
| Maximum Fuel Pressure (psi) | 70 PSI |
| Micron Rating | 100 |
| Mounting Type | External |
| Outlet Attachment | Female Thread |
| Outlet Outside Diameter | AN-12 |
| Outlet Quantity | 1 |
| Outlet Size | AN-12 |
| Outside Diameter | 2.5 IN |
| Outside Diameter (In) | 2.5 IN |
| Overall Length | 7 IN |
| Overall Length (In) | 7 IN |
| Quantity | Sold individually. |
| Shape | Straight |
| Smallest Particle Filtered | 100 microns |
| Universal Or Specific Fit | Universal |
