Part # 12303
$162.50

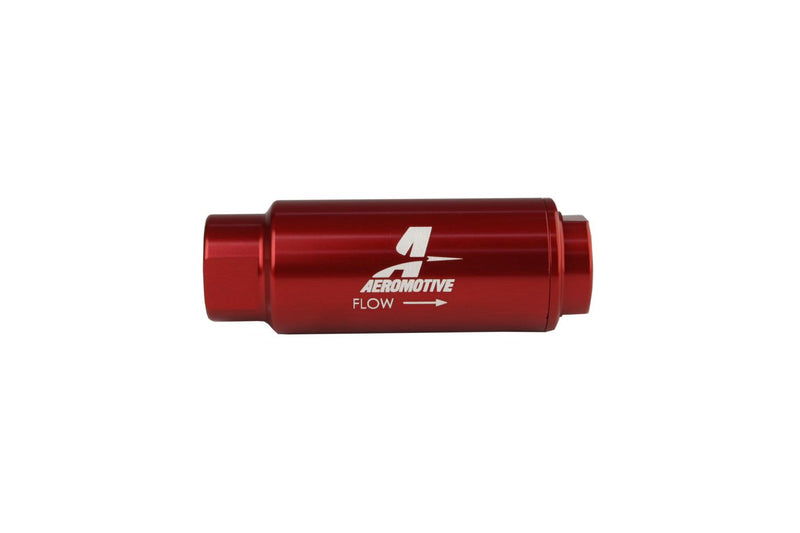

An inexpensive insurance policy to protect your investment, proper filtration is key to fuel system performance. Engineered filter solutions are required to achieve protection with minimum restriction. For 200 3,000 plus HP applications, our filter assemblies offer unmatched flow, ease of installation and maintenance, along with the impeccable machining and finish you've come to expect from all Aeromotive components. 40-micron fabric replaceable element. 3/8' NPT ports. Red, type II bright dip anodized finish.
Fits: Filter, In-Line, 40-m Fabric Element, 3/8 ? NPT Port, Bright-Dip Red, SS Series, 1-1/4" OD.
Installation note: SS Series fuel filter; red, type II bright dip anodized finish; compact size: 3.5" long x 1.25" diameter; 40-micron fabric element.
In the box: Filter Element, Gasket Or Seal
| Color | Red |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Filter Element Material | Cellulose |
| Filter Housing Color | Red |
| Filter Housing Diameter | 1.25 IN |
| Filter Housing Finish | Anodized |
| Filter Housing Length | 3.5 IN |
| Filter Housing Material | Billet Aluminum |
| Fitting Type | 3/8 NPT |
| Flow Rate | 2000 lbs/hr |
| Fuel Filter Style | Inline |
| Fuel Type | Gas / Diesel |
| Housing Material | Aluminum |
| Inlet Attachment | Female Thread |
| Inlet Outside Diameter | 3/8 NPT |
| Inlet Quantity | 1 |
| Inlet Size | 3/8 NPT |
| Length | 3.5 IN |
| Maximum Fuel Pressure (psi) | 70 PSI |
| Micron Rating | 40 |
| Mounting Type | External |
| Outlet Attachment | Female Thread |
| Outlet Outside Diameter | 3/8 NPT |
| Outlet Quantity | 1 |
| Outlet Size | 3/8 NPT |
| Outside Diameter | 1.25 IN |
| Outside Diameter (In) | 1.25 IN |
| Overall Length | 3.5 IN |
| Overall Length (In) | 3.5 IN |
| Quantity | Sold individually. |
| Shape | Straight |
| Smallest Particle Filtered | 40 microns |
| Universal Or Specific Fit | Universal |
