Part # 11197
$2,228.10

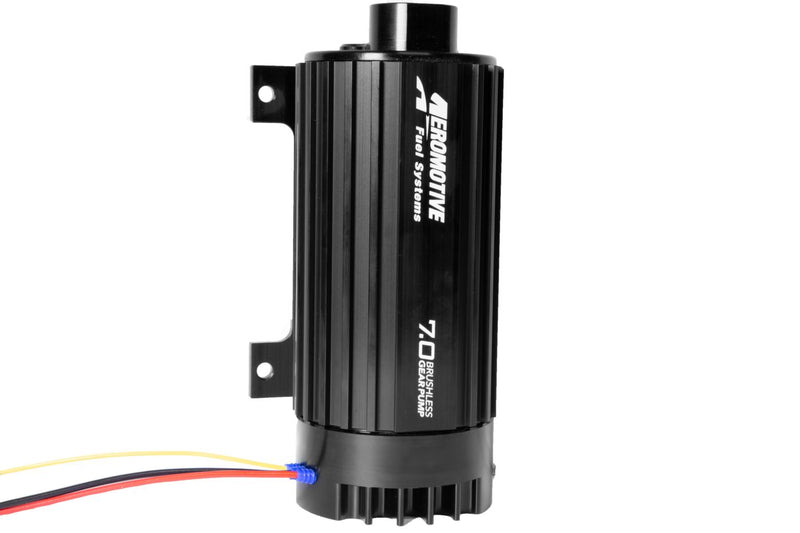

7.0 GPM Brushless Fuel Pump with True Variable Speed Controller. Ground-Shaking Performance Advanced Technology. Fuel Injected Engines: up to 4,800 FWHP on GAS naturally aspirated, up to 3,400 FWHP on GAS forced air induction, up to 3,360 FWHP on E85 naturally aspirated, up to 2,380 FWHP on E85 forced air induction. E85 Compatible, reduce max FWHP by 30%. Lighter than the traditional external mount pumps. Reduced current draw at higher, EFI pressures. Extended service life in methanol and ethanol. New integral spur-gear pumping mechanism.
Fits: Fuel Pump, TVS, In-line, Brushless, Spur, 7.0.
Installation note: 7.0 Brushless Fuel Pump
In the box: Mounting Bracket
| Carb HP on E85 | 3780 |
| Carb HP on Gas | 5400 |
| EFI HP on E85 | 3360 |
| EFI HP on Gas | 4800 |
| Fuel Delivery Type | Carburation & Fuel Injection |
| Fuel Type | Gas/E85 |
| Inlet Outside Diameter | ORB - 12 |
| Inlet Type | Female Thread |
| Integrated Controller | Yes |
| Internal Or External | External |
| Marine Approved | No |
| Maximum Current Draw | 12 @ 40 psi |
| Maximum Flow Rating | 7.0 GPM |
| Maximum Pressure | 90 |
| Motor Style | Brushless |
| Negative Ground | Yes |
| Outlet Outside Diameter | ORB - 10 |
| Outlet Type | Female Thread |
| Pulse Width Modulation Compatible | No |
| Pump Design | Spur Gear |
| Series | 7.0GPM |
| Terminal Quantity | 0 |
| Terminal Type | Lead Wire |
| Universal Or Specific Fit | Universal |
| Voltage | 12 |
| Wire Quantity | 3 |
