Part # 11108
$795.55
Certified to ISO 8846, SAE J1171 United States Coast Guard Requirements for Ignition Protection Fire Resistance. Carbureted Engines: up to 1500 HP naturally aspirated and up to 1200 HP forced air induction. Fuel Injected Engines: up to 1300 HP naturally aspirated and up to 1000 HP forced air induction.
Features & Benefits
Fuel Injected Engines:_x000D_
up to 1300 HP – naturally aspirated_x000D_
up to 1000 HP – forced air induction

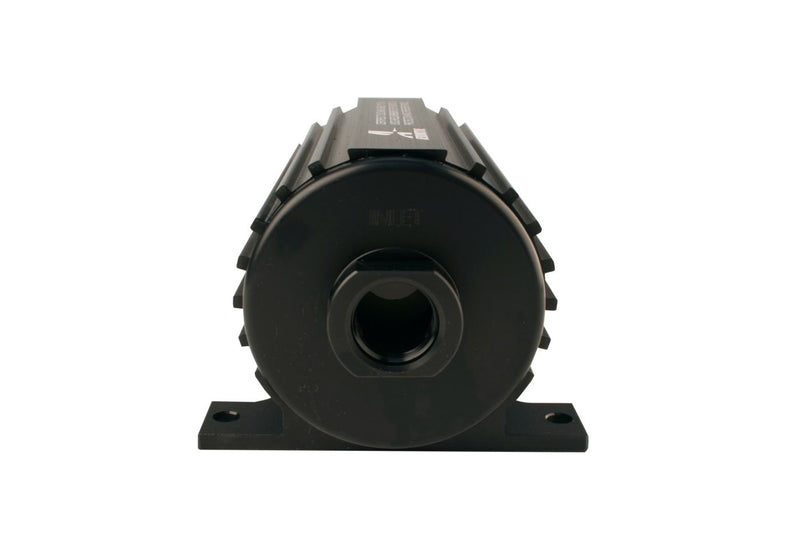

Fits: Marine 1000HP Fuel Pump.
Installation note: Marine 1000 HP Fuel Pump; Certified to ISO 8846, SAE J1171 and United States Coast Guard Requirements for Ignition Protection and Fire Resistance.
In the box: Mounting Bracket
| Carb HP on E85 | 1050 |
| Carb HP on Gas | 1500 |
| EFI HP on E85 | 910 |
| EFI HP on Gas | 1300 |
| Fuel Delivery Type | Carburation & Fuel Injection |
| Fuel Type | Gas/E85 |
| Inlet Outside Diameter | ORB - 10 |
| Inlet Type | Female Thread |
| Integrated Controller | No |
| Internal Or External | External Or Internal |
| Maximum Current Draw | 18 @ 45 psi |
| Maximum Flow Rating | 1000 |
| Maximum Pressure | 100 |
| Motor Style | Brushed |
| Negative Ground | Yes |
| Outlet Outside Diameter | ORB - 10 |
| Outlet Type | Female Thread |
| Pulse Width Modulation Compatible | Yes |
| Pump Design | Rotary Vane |
| Series | A1000 |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Threaded Stud |
| Universal Or Specific Fit | Universal |
| Voltage | 12 |
| Wire Quantity | 0 |
