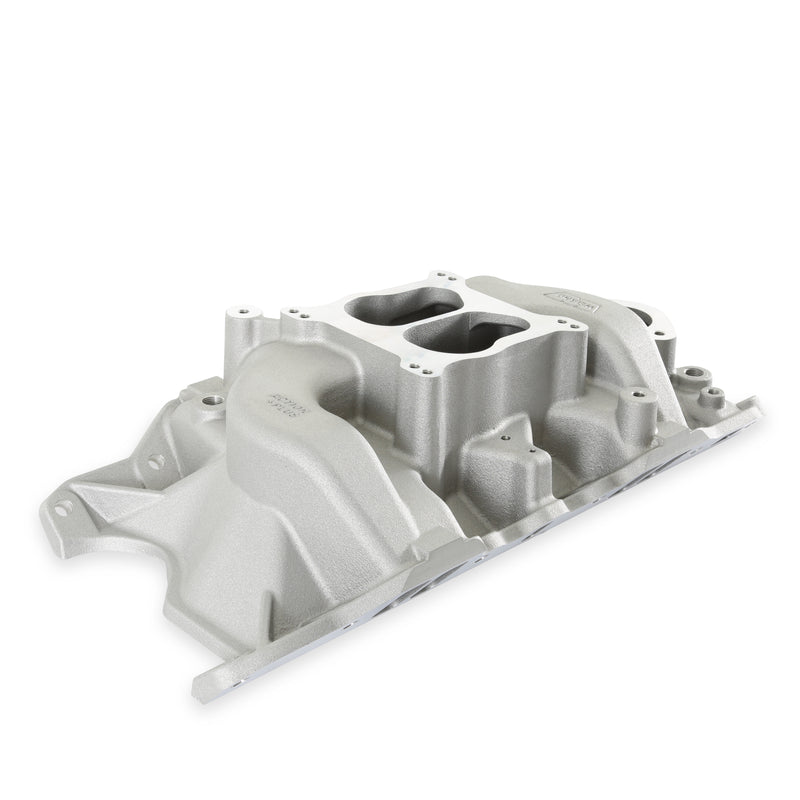

Chry S/B Action Plus

This manifold is part of the Weiand Nostalgia Series of intake manifolds. Weiand Nostalgia Series intake manifolds are made using the original tooling, and may have minor appearance imperfections that do not affect the functionality of the part. These minor blemishes are a natural part of the casting process when using the original sand casting tooling.

Features

• High Rise Dual Plane Design
• Port Size: 1.96” height 1.00" width
• Power band: Idle-6000 RPM
• Height: Front 4.88", Rear 5.94"
• No EGR Provisions
• Weiand Nostalgia Series Intake Manifold
• Universal Mounting Flange

Square bore carburetors may require plate P/N 9006 to seal properly. Rotary A/C compressor will not clear on 1978 and later applications. The water crossover has: 3/4" npt x 1 3/8" npt x 2 1/8" npt x 1 The manifold also has a 3/8" npt vacuum port.

Documentation

• Installation instructions — w537rev (PDF)
• Installation instructions — w521rev (PDF)
• Installation instructions — 199r11127 (PDF)
• Installation instructions — w540rev3 (PDF)
