Part # 839031
$979.95

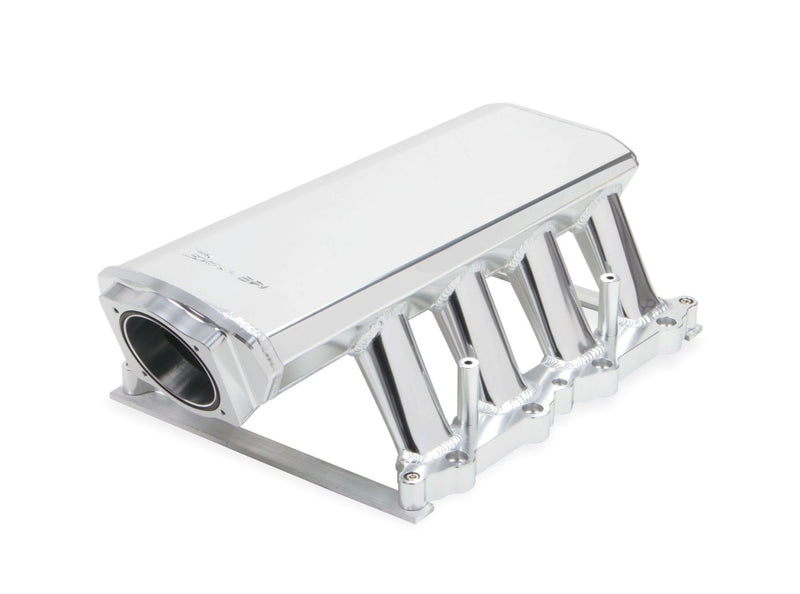

Holley continues to expand its offering of Sheet Metal Fabricated Intake Manifolds to now cover 2015-2017 Ford Coyote 5.0L V8 engines.
Features & Benefits
Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
Fits: Holley Sniper EFI Sheet Metal Fabricated Intake Manifold for 2015-2017 Ford 5.0L Coyote engines 90mm Throttle Body opening + Fuel Rail Kit Silver Finish with Sniper EFI logo
Installation note: When using a stock throttle body with this intake manifold, use P/N 860003 Throttle Body Spacer to create proper throttle body clearance.
In the box: Fuel Rail(s), Gasket Or Seal, Intake Port Gasket(s), Throttle Body Gasket
| Basic Operating RPM Range | 2200-6800 RPM |
| CNC Ported | No |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| Color | Silver |
| Construction | Fabricated |
| Cylinder Head Port Shape | Oval with dimple |
| Deck Height | 8.937 IN |
| EGR Port | No |
| Engine | Ford Coyote |
| Flange Style | N/A |
| Front Maximum Height | 7.165 IN |
| Injector Style Provision | EV6 USCAR |
| Material | Aluminum |
| Plenum Finish | Silver |
| Rear Maximum Height | 6.574 IN |
| Removable Runners | No |
| Removable Top/Lid | No |
| Runner Length | 5.709" (145mm) |
| Single Or Dual Plane Type | Single |
| Style | EFI |
| Throttle Body Bore Diameter | 90 MM |
| Throttle Bore | 90mm |
| Vacuum Ports | (3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
