Part # 822112-1
$1,068.95

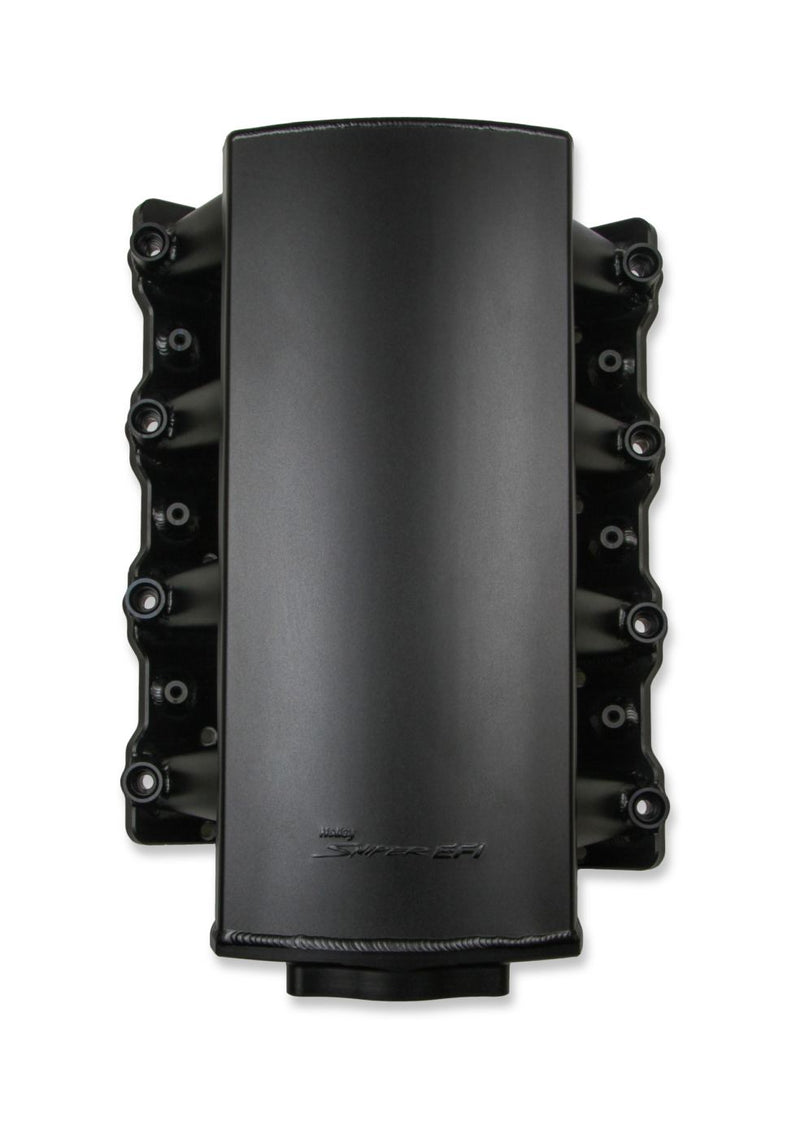

Holley Sniper Fabricated Manifolds continues to push the aftermarket by introducing Low Profile intakes for GM LS Engines. These Intakes are a good looking, perform well, and offer an extremely good value for a performance sheet metal style intake manifold for the very popular GM LS engine family.
Features & Benefits
Low Profile, Compact Design (overall 1.875 inches shorter) allows fitment under stock hoods on Corvette, Camaro, Firebird, GTO, and others where hood clearance is at a minimum
Fits: Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 102mm Throttle Body opening + Fuel Rail Kit Black with Sniper logo -Low Profile- Now Includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent.
Installation note: *** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
In the box: Fuel Rail(s), Gasket Or Seal, Intake Port Gasket(s), Throttle Body Gasket
| Basic Operating RPM Range | 1800-7000 RPM |
| CNC Ported | No |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| Color | Black |
| Construction | Fabricated |
| Cylinder Head Port Shape | Rectangle |
| Deck Height | 9.24 IN |
| EGR Port | No |
| Engine | GM LS3/L92 |
| Flange Style | N/A |
| Front Maximum Height | 6.077 IN |
| Injector Style Provision | EV1 |
| Material | Aluminum |
| Plenum Finish | Black |
| Rear Maximum Height | 5.29 IN |
| Removable Runners | No |
| Removable Top/Lid | No |
| Runner Length | 4.252" (108mm) |
| Single Or Dual Plane Type | Single |
| Style | EFI |
| Throttle Body Bore Diameter | 102 MM |
| Throttle Bore | 102mm |
| Vacuum Ports | (3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
