Product • Support • Tuning
Part # 822031-1
$906.95
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!
Features & Benefits
Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders

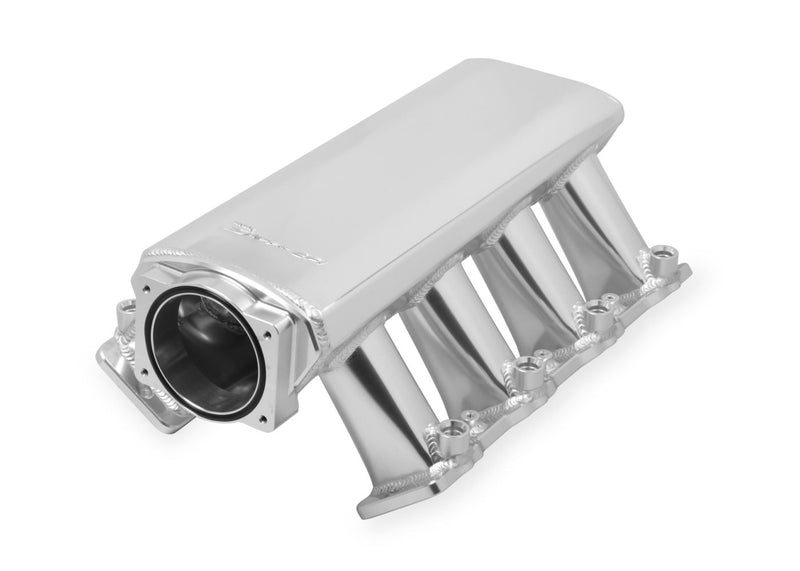

Fits: Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 92mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo - Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent.
Installation note: *** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment ***
In the box: Fuel Rail(s), Gasket Or Seal, Intake Port Gasket(s), Throttle Body Gasket
| Basic Operating RPM Range | 2500-7000 RPM |
| CNC Ported | No |
| Carburetor Flange | N/A |
| Carburetor Quantity | N/A |
| Color | Silver |
| Construction | Fabricated |
| Cylinder Head Port Shape | Rectangle |
| Deck Height | 9.24 IN |
| EGR Port | No |
| Engine | GM LS3/L92 |
| Flange Style | N/A |
| Front Maximum Height | 7.952 IN |
| Fuel System Type | EFI |
| Injector Style Provision | EV1 |
| Manifold Type | Fabricated |
| Material | Aluminum |
| Plenum Finish | Silver |
| Rear Maximum Height | 7.165 IN |
| Recommended Use | Forced Induction |
| Removable Runners | No |
| Removable Top/Lid | No |
| Runner Length | 5.512" (140mm) |
| Single Or Dual Plane Type | Single |
| Style | EFI |
| Throttle Body Bore Diameter | 92 MM |
| Throttle Bore | 92mm |
| Vacuum Ports | (3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
