Part # 821062
$1,068.95
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions!
Features & Benefits
Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders

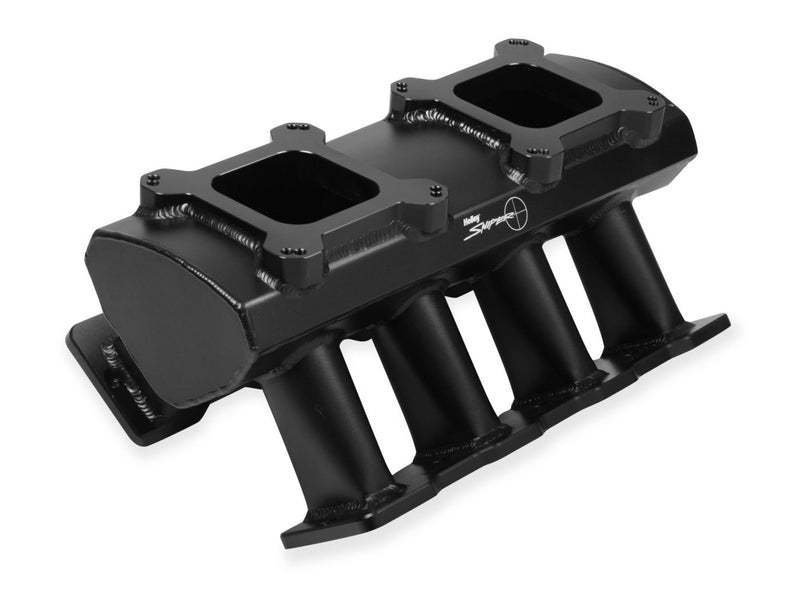

Fits: Hi-Ram Sheet Metal Fabricated Intake Manifold LS1/LS2/LS6 Single Plane Dual Quad Carbureted Black with Sniper logo
In the box: Gasket Or Seal, Intake Port Gasket(s)
| Basic Operating RPM Range | 2500-7000 RPM |
| CNC Ported | No |
| Carburetor Flange | Square/4150 |
| Carburetor Quantity | 2 |
| Color | Black |
| Construction | Fabricated |
| Cylinder Head Port Shape | Cathedral |
| Deck Height | 9.24 IN |
| EGR Port | No |
| Engine | GM LS1/LS2/LS6 |
| Flange Size | 4150 |
| Flange Style | 4150 Square Bore |
| Front Maximum Height | 9.015 IN |
| Fuel System Type | Carb |
| Material | Aluminum |
| Plenum Finish | Black |
| Rear Maximum Height | 9.015 IN |
| Removable Runners | No |
| Removable Top/Lid | No |
| Runner Length | 4.921" (125mm) |
| Single Or Dual Plane Type | Single Plane |
| Style | Carbureted |
| Throttle Body Bore Diameter | 3.6 MM |
| Vacuum Ports | (3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
