Part # 19-184
$871.95

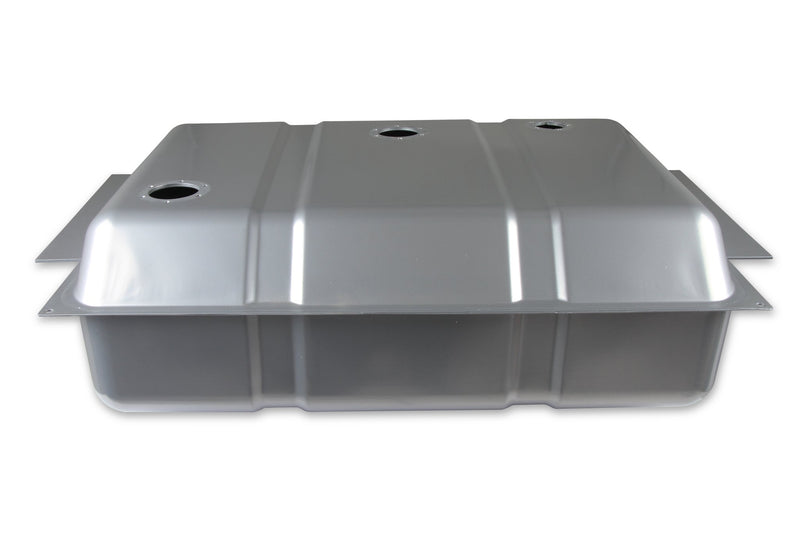

The 19-184 fuel system kit is designed for the 1963-66 Chevy/GMC trucks. This fuel tank mounts under the truck bed using the flanges to bolt in place. The tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases. It is up to the installer to drill and locate the mounting holes. Mounting hardware is not included.
Features & Benefits
Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
Fits: 1963-1966 Chevy/GMC Truck Under Bed Mount 255 LPH EFI TANK
Installation note: When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.
In the box: New Straps, O-Ring, Sending Unit
| Attached Sump | Yes |
| Baffled Sump | Yes |
| Choose Your Part | Fuel Tank |
| Color | Silver |
| Drain Plug | No |
| Filler Neck Attached | No |
| Finish | Powdercoated |
| Free Flow LPH | 255 |
| Fuel Sending Unit Ohms | 0-30 Ohms |
| Fuel System Compatibility | Electronic Fuel Injection |
| Fuel System Type | Gasoline |
| Fuel Tank Coating | Powder Coated |
| Gallon Capacity | 18 |
| Material | Steel |
| Maximum Flow Rating | 255 LPH |
| Resistance Ohms Empty | 0 82 |
| Resistance Ohms Full | 30 82 |
| Tank Capacity | 18 GA |
| Tank Color | Gray |
| Tank Material | Steel |
