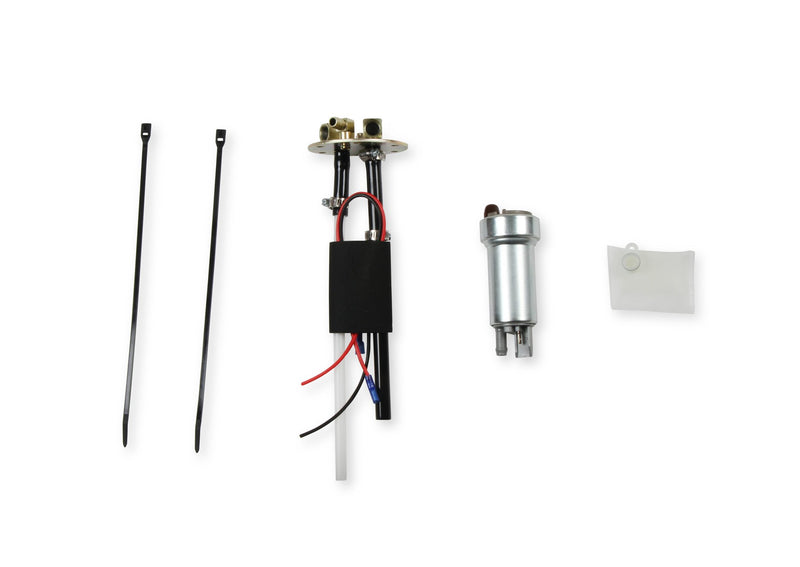

Fuel Pump Assembly - 400 LPH

400 LPH Electric Fuel Pump Assembly for Sniper EFI Fuel Tanks. Oven brazed fittings can withstand 100 psi. Genuine Walbro Fuel Pump included. 1/4" NPT Supply and Return line. For a better seal, use Permatex Indian Head Gasket Shellac Compound or Aviation Form-A-Gasket sealant on the gasket and screws.

Features & Benefits
New Mounting Screws and gasket available separately

Fits: Replacement 400 LPH FUEL PUMP AND HANGER ASSEMBLY

Installation note: New Mounting Screws and gasket available separately. _x000D_ *19-170 kit is a thicker gasket and longer screws for use on the GM A Body (Chevelle, GTO, etc....) fuel tanks since they are shallower at the point where the fuel pump is mounted. _x000D_ *19-169 kit for all other EFI fuel tanks_x000D_ Connect your in-tank wire harness to the fuel pump, making sure that the connections are secure. Route the wires through the pass through fitting being sure to leave a little slack to prevent strain or chaffing, Use a 9mm wrench to tighten the upper jam nut on the wire pass through in 1/4 turn increments until the wire no longer moves up and down. BE CAREFULL NOT TO OVERTIGHTEN DOING SO COULD BREAK THE FITTING OR CAUSE A LEAK.

In the box: Strainer

Specifications

Product Video
