Part # 19-108
$1,012.95

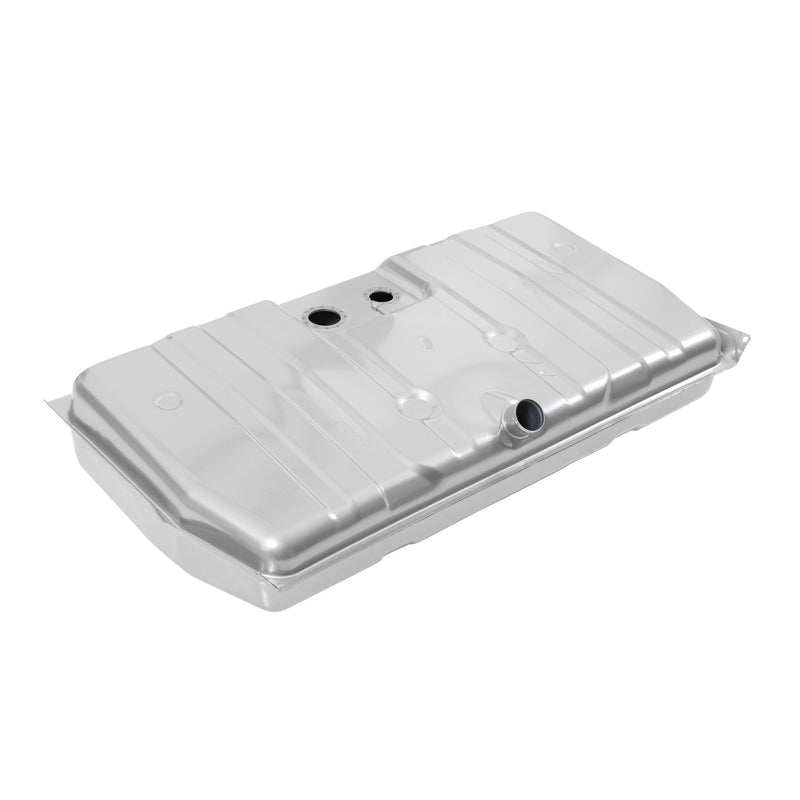

Each tank is a direct fit for your application with no modifications necessary. The kit includes the tank, a 255 lph fuel pump, a fuel level sender, new tank straps, and the filler neck. The tank is powder coated for corrosion resistance and great looks. The 255 LPH fuel pump supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw).
Features & Benefits
Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
Fits: 1970-1973 Camaro and Firebird
Installation note: When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.
In the box: Lock Ring, Mounting Straps, New Straps, O-Ring, Sending Unit
| Attached Sump | Yes |
| Baffled Sump | Yes |
| Color | Silver |
| Drain Plug | No |
| Filler Neck Attached | No |
| Finish | Powdercoated |
| Free Flow LPH | 255 |
| Fuel Sending Unit Ohms | 0-90 Ohms |
| Fuel System Compatibility | Electronic Fuel Injection |
| Fuel System Type | Gasoline |
| Fuel Tank Coating | Powder Coated |
| Gallon Capacity | 20.5 |
| Material | Steel |
| Maximum Flow Rating | 255 LPH |
| Resistance Ohms Empty | 0 82 |
| Resistance Ohms Full | 90 82 |
| Tank Capacity | 20.5 GA |
| Tank Color | Gray |
| Tank Material | Steel |
