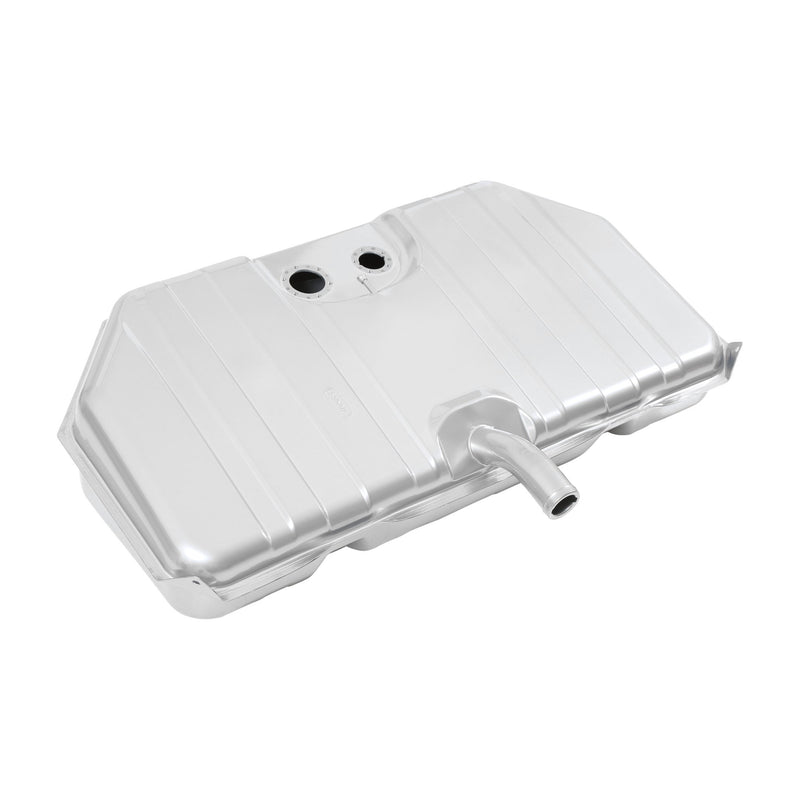

Sniper EFI Fuel Tank System 255 LPH - 1969 Chevy Camaro / Firebird with notched front corners

Each tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 255 lph fuel pump, a fuel level sender, and new tank straps. The tank is powder coated for corrosion resistance and great looks. This model has notched front corners for additional tire and exhaust clearance. This notched corner 69 Camaro and Firebird tank is perfect for mini-tub applications. The front of this tank is narrowed to 27" to clear up to a 345 tire and 3" exhaust. To help regain fuel capacity from the notched corners this tank is 1" deeper than stock. Even if you do not have a mini-tubbed car this tank will work on a stock car where you need a little more clearance for exhaust. The 255 LPH fuel pump supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw).

Features & Benefits
Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car.

Fits: 1969 Chevy Camaro / Firebird with notched front corners

Installation note: When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.

In the box: Lock Ring, New Straps, O-Ring, Sending Unit
