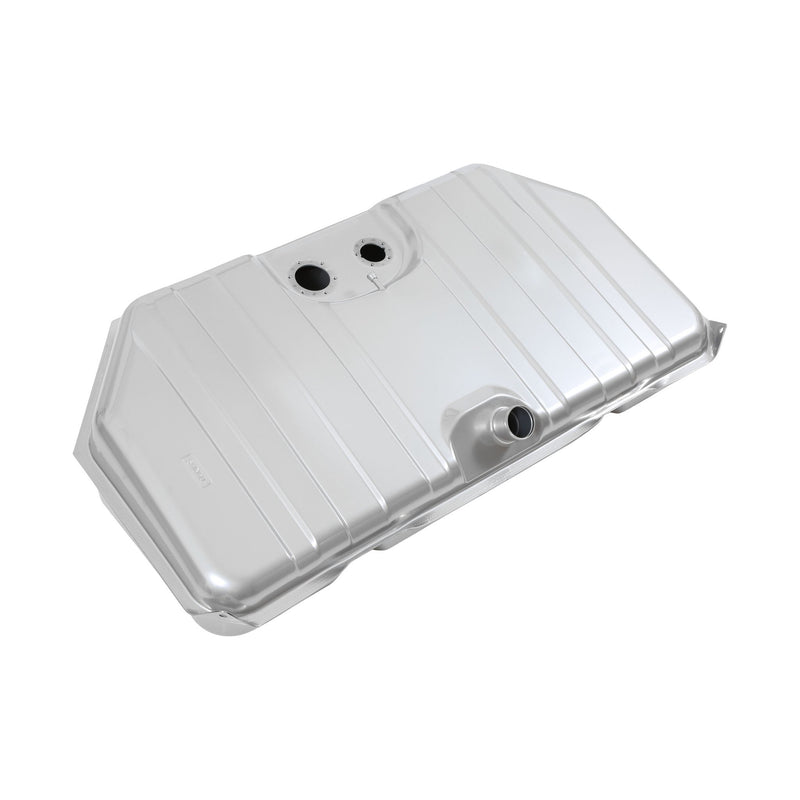

Sniper EFI Fuel Tank System 255 LPH - 1967-1968 Chevy Camaro / Firebird with notched front corners

Each tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 255 lph fuel pump, a fuel level sender, and new tank straps. The tank is powder coated for corrosion resistance and great looks. This model has notched front corners for additional tire and exhaust clearance. This notched corner 67-68 Camaro and Firebird tank is perfect for mini-tub applications. The front of this tank is narrowed to 27" to clear up to a 345 tire and 3" exhaust. To help regain fuel capacity from the notched corners this tank is 1" deeper than stock. Even if you do not have a mini-tubbed car this tank will work on a stock car where you need a little more clearance for exhaust. The 255 LPH fuel pump supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw).

Features & Benefits
Fuel pump and sender are recessed in the fuel tank to provide an easy installation with no modifications to your vehicle.

Fits: 1967-1968 Chevy Camaro / Firebird with notched front corners

Installation note: When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank._x000D_ The filler neck is not included with the 1967-1968 Camaro/Firebird fuel tanks. You will need to use your original filler neck or purchase the 19-552 replacement filler neck.

In the box: Lock Ring, Mounting Straps, New Straps, O-Ring, Sending Unit

Specifications

Product Video
