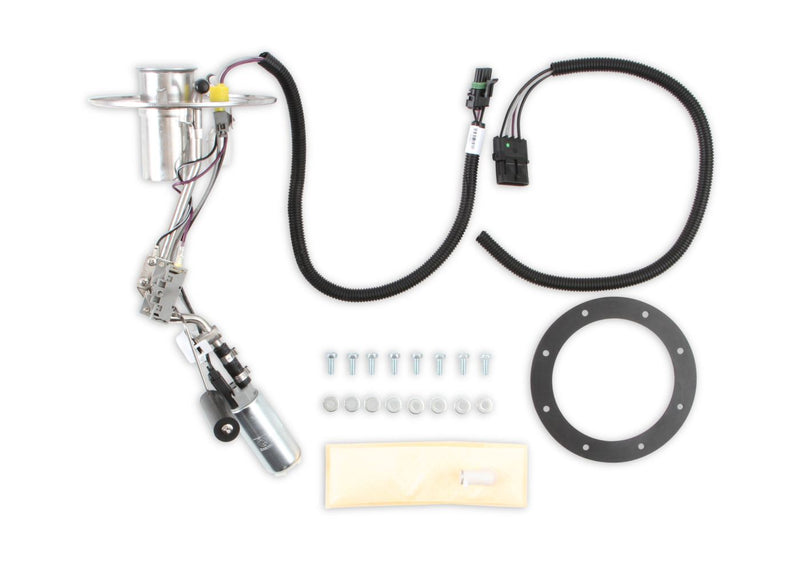

Holley EFI Fuel Tank Module - 255 LPH - 1978-1982 Corvette
Sniper EFI

Holley EFI Fuel Tank Module - 255 LPH - 1978-1982 Corvette

Part # 12-313

$629.95

In Stock

The fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! The 1978-1982 Chevrolet Corvette Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.

Features & Benefits
Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues

Fits: In-tank fuel pump module for 1978-1982 Chevrolet Corvette. Supports Up To 550 Horsepower.

In the box: Fuel Filter, Fuel Sending Unit, Gasket Or Seal, Lock Ring, Regulator, Strainer, Wire Harness

Specifications

Average Flow Rating 255 LPH
Connector Gender Male
Engine Chevrolet Small Block Gen I
Free Flow LPH 255
Fuel Sending Unit Ohms 0-90 Ohms
Fuel Type Gasoline
In Tank or External In Tank
Inlet Diameter (in) 5/16"
Inlet Quantity One
Make Chevrolet
Material Steel and Plastic
Maximum Pressure 58 PS
Model Corvette
Negative Ground Yes
Outlet Outside Diameter 3/8 IN
Outlet Quantity One
Pump Type Electric
Resistance Ohms Empty 0 82
Resistance Ohms Full 90 82
Universal Or Specific Fit Specific
Vent Size N/A
