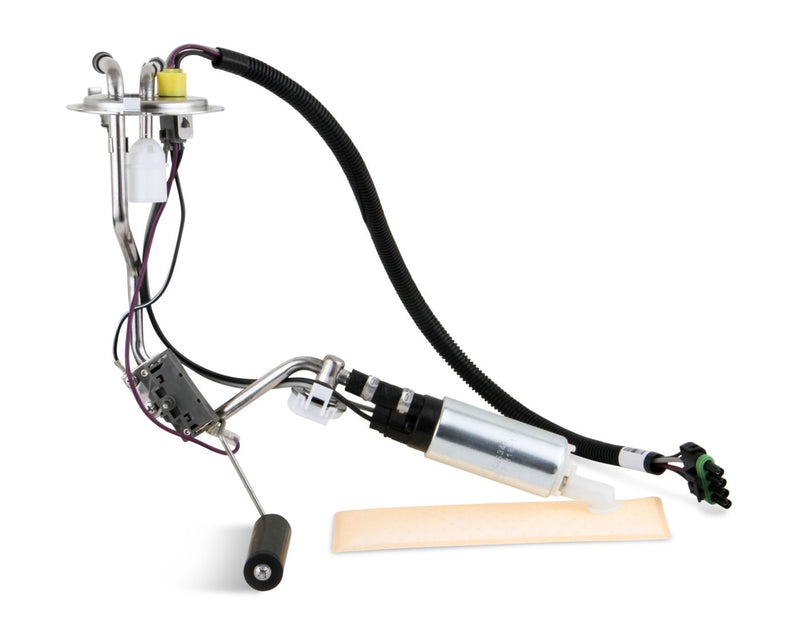

Holley EFI Fuel Tank Module - 255 LPH - 1973-1987 GM C/K Series Truck

The fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1973-87 GM C/K Series Muscle Truck EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.

Features & Benefits
Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues

Fits: In-tank fuel pump module for 1973-1987 GM C/K series trucks. Supports Up To 550 Horsepower.

Installation note: This pump module is compatible with 1973-1986 fuel tanks that do not have the fuel injection baffles (GM11B style)._x000D_ If you have the 1987 (GM11C) tank, you will have to use the earlier non-fuel injection tank._x000D_ _x000D_ The pump is not compatible for use with PWM (Pulse-width Modulation)

In the box: Fuel Filter, Fuel Sending Unit, Gasket Or Seal, Lock Ring, Regulator, Strainer, Wire Harness

Specifications

Product Video
