Home / Shop / Holley EFI Ignition Coil Remote Relocation Bracket, Black Finish, Pair - Gen V Coil Body, Remote Relocation System - Black Finish

No image yet
Holley

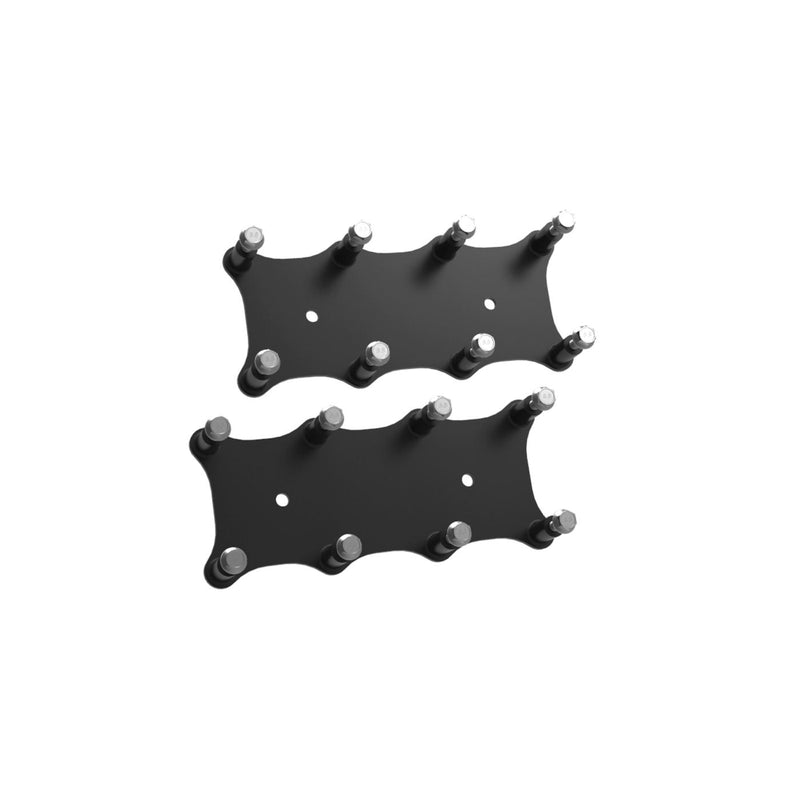

Holley EFI Ignition Coil Remote Relocation Bracket, Black Finish, Pair - Gen V Coil Body, Remote Relocation System - Black Finish

Part # 561-130

$224.95

In Stock

Holley is pleased to announce the arrival of our remote coil relocation brackets for all existing LS coil models, as well as for Holley EFI SmartCoils. These brackets are fabricated from lightweight aluminum and allow users to discreetly remote mount their LS engine coils at a location of their choice. Each kit was custom designed based on the specific coil model to ensure that the coils will mount as compactly as possible â€" size and shape between each kit will vary depending on the coil being used. Each kit includes two coil dependent mounting brackets (available in both natural aluminum and black) and mounting hardware for each coil.

Features & Benefits
Designed to custom fit all LS Ignition coil models

Fits: Gen V Coil Body, Remote Relocation System - Black Finish

Installation note: Vehicle Applications: - 05-06 Chevy, Buick, Cadillac, Pontiac Cars w/ 5.3L, 6.0L, 7.0L Engines VIN Designation: M, E, C - 05-06 Chevy, GMC Trucks w/ 5.3L, 6.0L Engines VIN Designation: M, U, H

In the box: Hardware, Mounting Hardware

Specifications

Coil Spacing 0.904" / 22.95mm
Coil Type Gen V LS Coil / D510C
Dimension A With Coils: 9.8" L x 4.3" W x 2.0" H
Dimension B Bracket Only: 8.25" L x 3.6" W x 1" H
Finish Black
Material Aluminum
Thread Size M6 x 1.0 x 25mm

Product Video
