Holley EFI CAN Input/Output Module Kit

The Holley EFI CAN Input/Output Module can be added to Holley EFI HP, Dominator, Terminator X and Terminator X Max EFI installations. This CAN module will add (8) inputs and (8) outputs to the system which can be used to control additional accessories or provide critical sensor inputs. This module is perfect for anyone wanting to enhance the capabilities of their current ECU and have already tapped out their ECU's Input/Output channels.

Features & Benefits

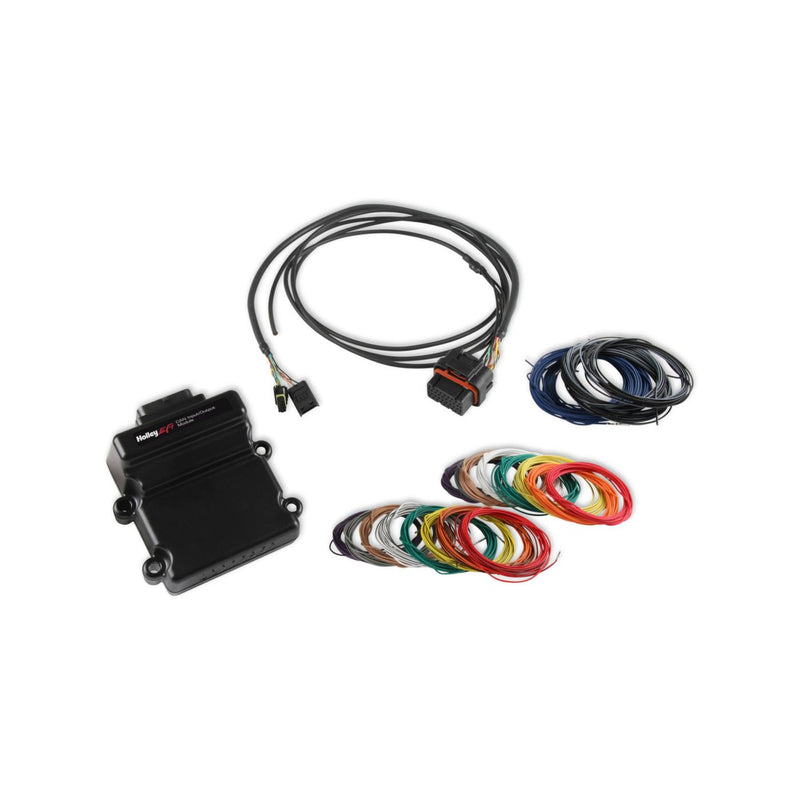

Includes a pre-terminated CAN Harness allowing you to quickly install the Holley EFI CAN module to any existing Holley EFI installation

Fits: Adds Up To (8) Inputs and Outputs

Installation note: Dominator and HP requires V6 software version Build 200 and higher. Terminator X requires V2 software Build 51 and higher.

The added inputs/outputs are added via the "Inputs/Outputs ICF" in the software. The IO Module only supports inputs and outputs added in the Inputs/Outputs ICF. It does not support pre-defined inputs and outputs within the other ICF's.
