Part # 554-153
$1,462.95

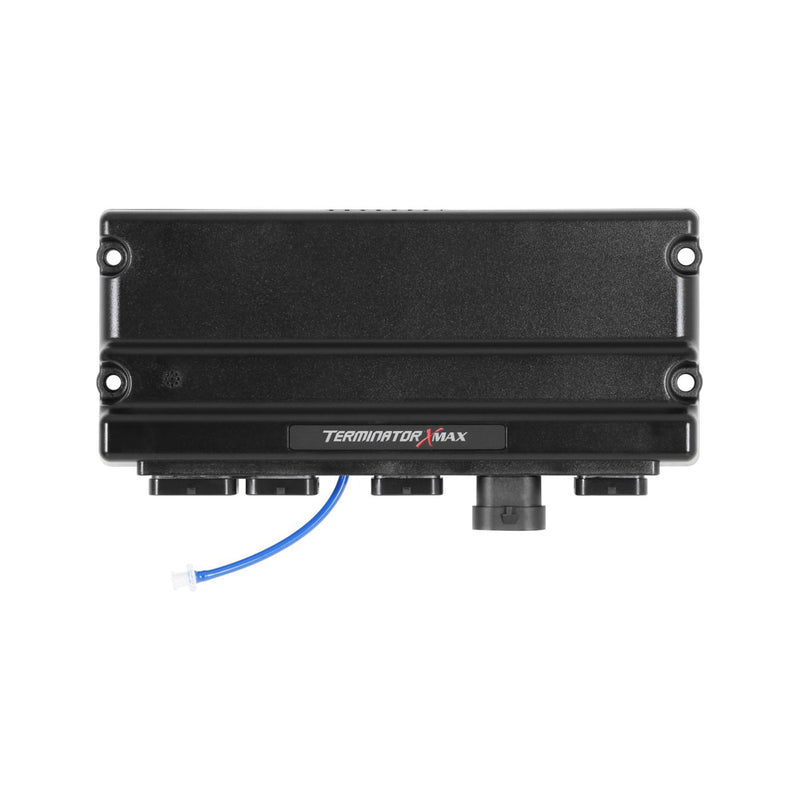

The Terminator X Max ECU features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, electronic transmission control, drive-by-wire throttle body control, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more.
Features & Benefits
8 Built-in multi-color diagnostic LED's allow you to quickly identify a variety of potential system issues, such as a failed TPS (Throttle Position Sensor) Autoset, faulty crank or cam sensors, or potential oxygen sensor issues
Fits: Compatible with all Terminator X Harnesses
Installation note: ECU is not recommended for marine applications, but can be used on off-road applications as long as you choose a safe location, keep it dry, protect from heat, and ensure proper wiring management.
| Accelerometer Support | Yes |
| Boost Control | Yes |
| CAN-BUS Support | Yes |
| Coast Guard Approved | No |
| Coil Per Cylinder Ignition Support | Yes |
| Datalogging Support | Yes |
| Dry Nitrous Control | Yes |
| EGT Support | Yes |
| Forced Induction Support | Yes |
| Height | 1.63" |
| Ignition Timing Control | Yes |
| Individual Cylinder Fuel Corrections | Yes |
| Knock Retard Support | Yes |
| Length | 9.60" |
| Mounting Hole Quantity | 4 |
| Multi-Stage Nitrous Control | No |
| Progressive Nitrous Control | Yes |
| Removable PROM | No |
| Terminal Gender | Male |
| Terminal Quantity | 114 |
| Traction Control Support | Yes |
| User-Tuneable | Yes |
| Weight | 1.44 |
| Wet Nitrous Control | Yes |
| Width | 5" |
| e85 Support | Yes |
