Part # 553-128
$292.95
These analog-style gauges are designed specifically for use with Holley EFI systems. They are compatible with all Terminator, HP, and Dominator ECU's, allowing them to be installed in a variety of Holley EFI equipped vehicles. CAN-bus communication allows the gauges to daisy chain using the included stereo cables, making installation quick and clean. The required gauge module (P/N 554-130) allows plug and play communication between the ECU and gauges, through a one-wire ECU connection.
Features & Benefits
Pointer is driven by a high-torque internal stepper motor to ensure accurate movement in racing conditions

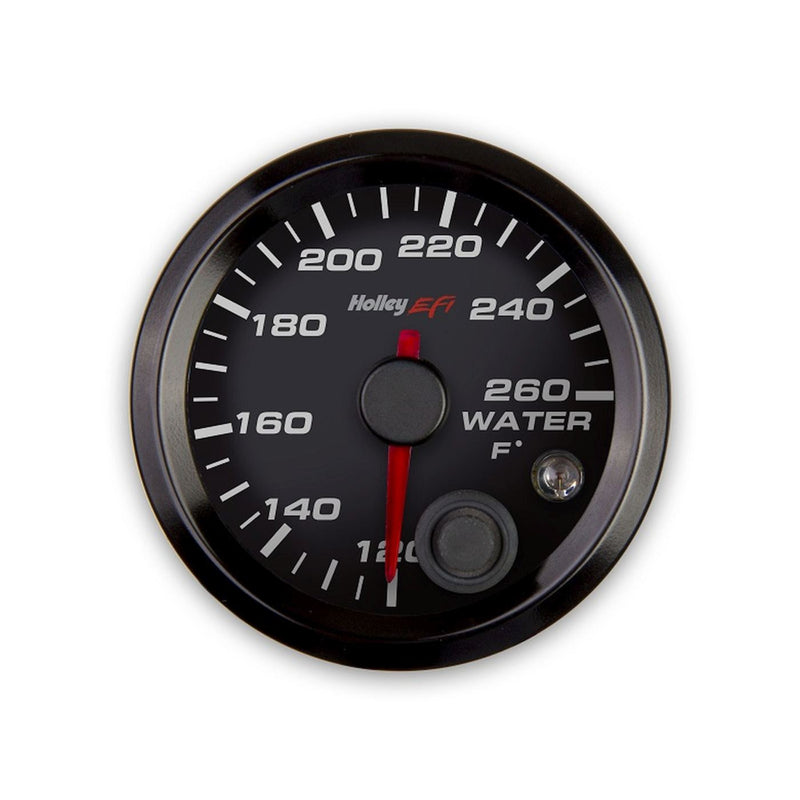

Fits: coolant temperature - Standard 2-1/16" size - 120°-260° - Black Face - Black Bezel
Installation note: Easy to install - One plug and play gauge module (P/N 554-130) is required per set of CAN gauges. User can daisy chain as many gauges as they choose; all gauge data supplied through a one-wire ECU connection.
In the box: Mounting Hardware
| Bezel Color | Black |
| Bezel Material | Aluminum |
| Body Color | Black |
| Color Change Button | No |
| Dimmable | No |
| Display Type | Analog |
| Face Color | Black |
| Face Diameter | 2-1/16 IN |
| Face Shape | Round |
| Gauge Background Color | Black |
| Gauge Type | Coolant Temperature |
| Illuminated | Yes |
| Indicator Markings Color | Multiple Colors |
| Lens Color | Clear |
| Liquid Filled | No |
| Maximum Temperature Reading | 260 FA |
| Minimum Temperature Reading | 120 FA |
| Pointer Color | Red |
| Sensor Type | Electrical |
| Size | 2-1/16" |
| Type | Electrical |
| Universal Or Specific Fit | Universal |
| Warning Light | Yes |
