Holley EFI Terminator X Max - LS1/LS6 - 24x Crank - 1x Cam - EV1 Injectors - Drive-By-Wire Throttle Body Control - USB/CAN Tuning

Terminator X Max features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Part number 550-929 also has Drive-by wire throttle body control. Terminator X Max comes fully loaded with base maps for common LS engine combinations to get you out of the garage and on the road/track fast. The These Terminator X kits include a USB/CAN tuning cable instead of the 3.5" Handheld LCD, these kits require the use of the free Terminator X Software for initial setup. The Terminator X Software includes multiple base calibrations to choose from for either naturally aspirated or boosted engines.

Features & Benefits

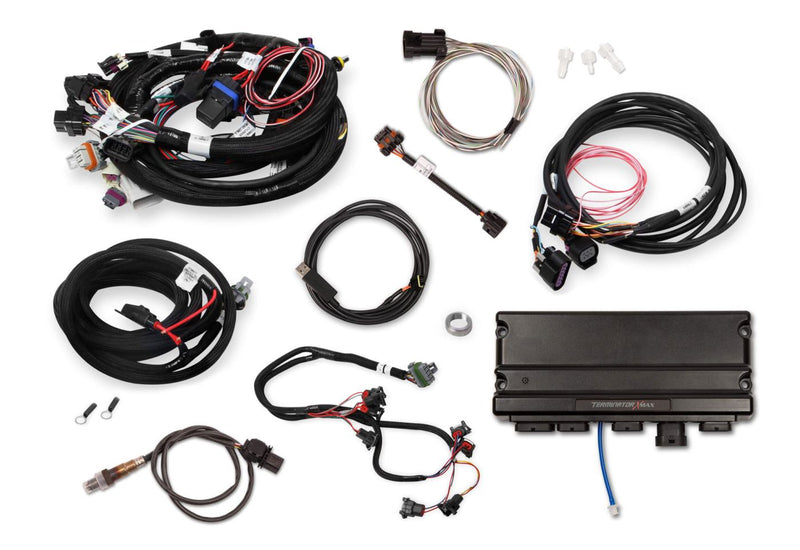

Includes: 24x LS Engine Main Harness - EV1 Injector Harness - DBW Throttle Body Harness - Terminator X MAX ECU - ECU Main Power Harness - Bosch LSU 4.9 Wideband Oxygen Sensor - Input/Output Harness - and assorted vacuum adapters.

Fits: 24x Crank - 1x Cam - EV1 Injectors - Drive-By-Wire Throttle Body Control - USB/CAN Tuning Cable

Installation note: Terminator X ECU's are designed to be mounted with the LED's facing up. Designed to work with GM Throttle body P/N's - 12570790 and 12580760 Designed to work with GM Throttle Pedal P/N - 10379038. ECU is not recommended for marine applications, but can be used on off-road applications as long as you choose a safe location, keep it dry, protect from heat, and ensure proper wiring management.

Specifications

Product Video
