Part # 550-903-2
$3,598.95

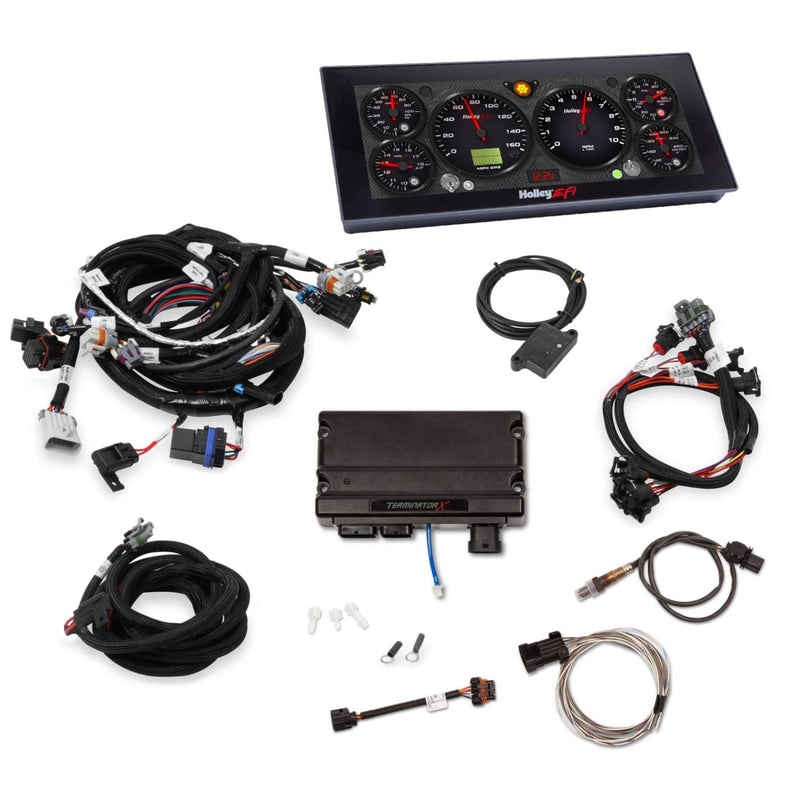

Terminator X features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X comes fully loaded with base maps for common V8 engine combinations to get you out of the garage and on the road/track fast.
Features & Benefits
The included 3.5" Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any LS engine. Additionally the handheld provides internal data-logging and a fully customizable gauge display
Fits: 24x Crank - 1x Cam - EV1 Injectors - 3.5 in. Touchscreen
Installation note: Terminator X ECU's are designed to be mounted with the LED's facing up.
In the box: Handheld
| Accelerometer Support | Yes |
| Boost Control | Yes |
| CAN-BUS Support | Yes |
| Coil Per Cylinder Ignition Support | Yes |
| Color | Black |
| Crank Reluctor | 24x |
| Datalogging Support | Yes |
| Display | 12.3 in. Pro Dash w/ Bluetooth Module |
| Drive-By-Wire | No |
| Dry Nitrous Control | Yes |
| EGT Support | Yes |
| Engine | GM LS1/LS2/LS6 |
| Finish | Textured |
| Forced Induction Support | Yes |
| Ignition Timing Control | Yes |
| Ignition Type | GM LS 24x |
| Individual Cylinder Fuel Corrections | Yes |
| Injector Connector | Jetronic/Minitimer (Bosch EV1) |
| Knock Retard Support | Yes |
| MAP Sensor | 1bar |
| Multi-Stage Nitrous Control | Yes |
| Progressive Nitrous Control | Yes |
| Self-Tuning | Yes |
| Terminator LS Options | Fuel, Spark |
| Transmission | None |
| User-Tuneable | Yes |
| Wet Nitrous Control | Yes |
| e85 Support | Yes |
