Part # 550-1214
$3,543.95

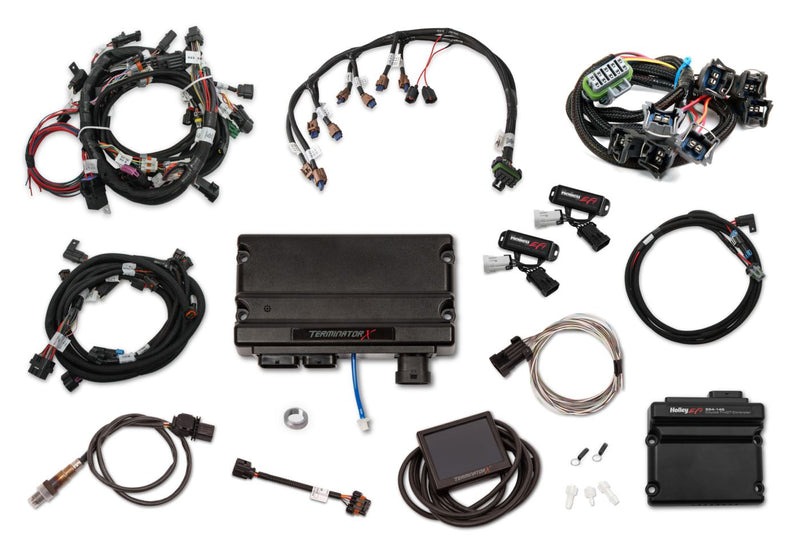

Terminator X ECU comes fully loaded with base maps for common Coyote engine combinations to get you out of the garage and on the road/track fast. The included 3.5" LCD touch screen handheld contains an easy to use calibration wizard as well as tuning and gauge display functions.
Features & Benefits
Built in 1bar MAP (manifold absolute pressure) sensor included - For Boosted applications – internal MAP sensor can be disabled and utilize external MAP sensor harness (kit includes a terminated connector for seamless installation)
Fits: 2015.5-2017 Ford Coyote Engines with Ti-VCT and EV1 injectors, for Late Coils
Installation note: Terminator X ECU's are designed to be mounted with the LED's facing up.
In the box: Handheld
| Accelerometer Support | Yes |
| Boost Control | Yes |
| CAN-BUS Support | Yes |
| Coil Per Cylinder Ignition Support | Yes |
| Color | Black |
| Datalogging Support | Yes |
| Drive-By-Wire | No |
| Dry Nitrous Control | Yes |
| EGT Support | Yes |
| Engine | Coyote |
| Finish | Textured |
| Forced Induction Support | Yes |
| Ignition Coil Type | Late |
| Ignition Timing Control | Yes |
| Individual Cylinder Fuel Corrections | Yes |
| Injector Connector | Jetronic/Minitimer (Bosch EV1) |
| Knock Retard Support | Yes |
| MAP Sensor | 1bar |
| Multi-Stage Nitrous Control | Yes |
| Progressive Nitrous Control | Yes |
| Self-Tuning | Yes |
| Transmission | None |
| User-Tuneable | Yes |
| Wet Nitrous Control | Yes |
| Year Range | 2015.5-2017 |
| e85 Support | Yes |
