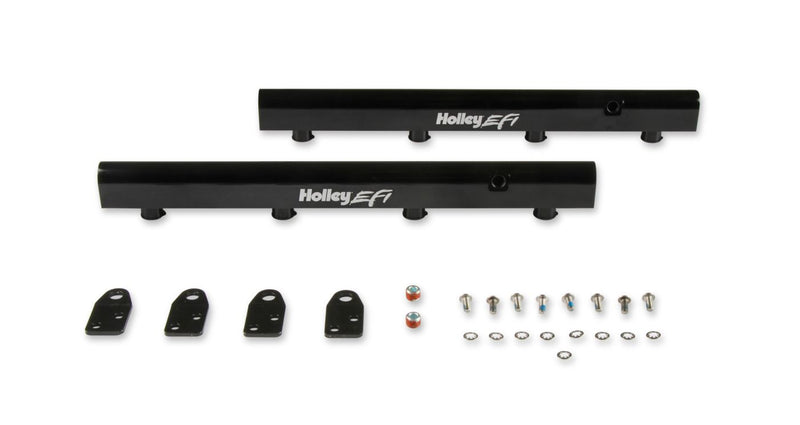

Hi-Flow Billet Fuel Rails for Coyote Engines

The new Hi-Flow billet fuel rails are a direct fit for all late model, 2011 and newer naturally aspirated Coyote engines (5.0 and 5.2) including Cobra Jet and Boss 302. This also includes the 2018 and newer direct injection engines. The fuel rails feature a 5/8" diameter fuel passage that provides the flow capacity for high horsepower applications.

Features & Benefits
Injector Clip feature retained so factory injector clips can be re-used. This is important as the clips locate the injector radially for proper injector spray pattern onto valves.

Fits: 2011-2021 Ford Coyote Engines including the 2018-2021 Direct Injected Engines

Installation note: Gauge ports can be used to install fuel press/temp sensor on 2018+GT models with Earls P/N 02112ERL Gauge ports can be used as fuel feed connection with NOS P/N 17015NOS Gauge port can be used to feed DI pump on 2018+ Cars using NOS P/N 17015NOS Rail feed from factory line can also be accomplished with P/N 534-211

In the box: Mounting Hardware
