Part # 522-80
$263.95

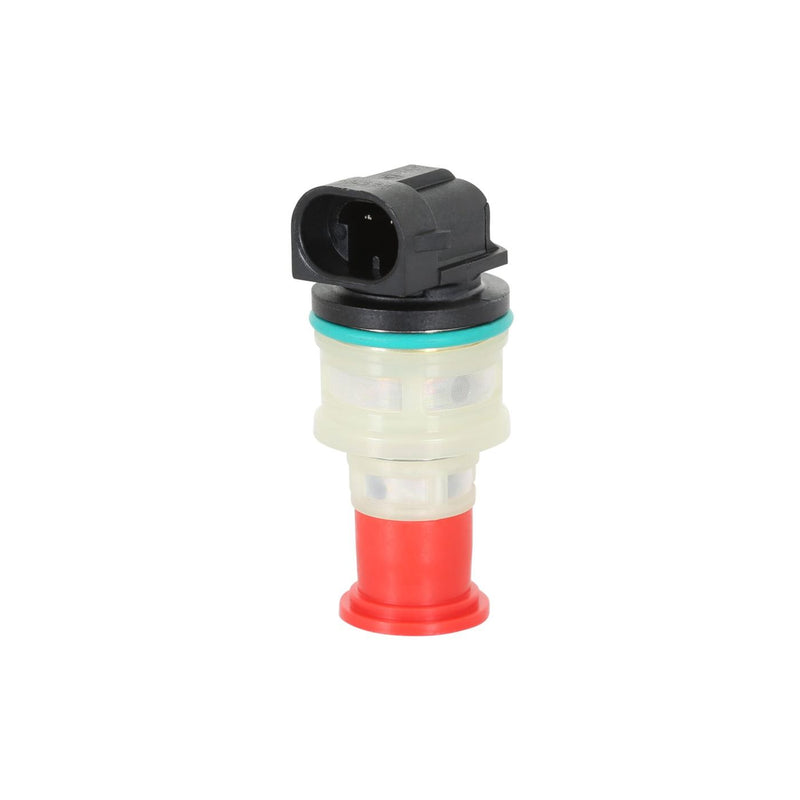

This electromagnetic valve meters fuel into the intake manifold proportional to the air being induced into the engine. When the valve is energized, the electromagnetic force generated by the solenoid lifts the pintle/ball from the seat. Fuel under pressure is then injected into the throttle body bore. For throttle body injection, a hollow conical spray is required to aim the metered flow around the throttle valve.
Features & Benefits
Fits 502-4, 502-7, 502-8, and 950-24S throttle body injectors and systems
Fits: Typically used in TBI systems
Installation note: Typically used in TBI systems.
In the box: Gasket Or Seal
| Body Diameter | 0.97 |
| Body Length | N/A |
| Body Style | N/A |
| Color | Black |
| Connector Series | Early TBI |
| Connector Shape | Early TBI |
| Flow Rate | 72 4U |
| Fuel Injection Type | Port |
| Fuel Type | E-85, Gasoline |
| Impedance | Low (2.0 Ohm) |
| O-Ring Quantity | 2 per injector |
| O-Ring to O-Ring | N/A |
| Rated Injector Flow | 72 lb/hr |
| Terminal Gender | Female |
