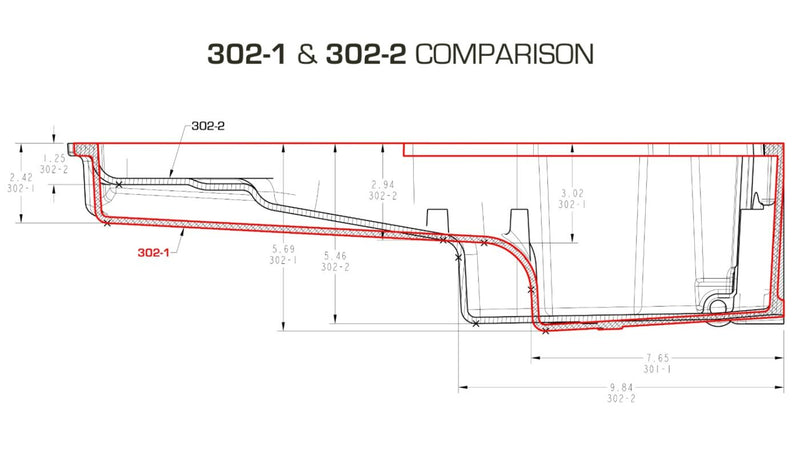

Holley GM LS Swap Oil Pan - Additional Front Clearance

GM's popular LS engines are finding their way into a large variety of vehicles. They make great power, plus they're very durable and reliable. Unfortunately, the factory LS pans don't always fit or they hang too low for today's hot rods. Holley's new LS Retro-fit Engine Oil Pan is designed to help! It provides maximum clearance to the chassis and ground, plus provides an OE (Original Equipment) style fitment for durability and proper sealing.

Features & Benefits
Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments

Fits: Fits most GM/Muscle Car/Classic Car/Trucks and any LS Swapped Vehicle Requiring More Clearance at the Front Half of the Pan

Installation note: Maximum crankshaft stroke = 3.62" Sump Oil Capacity - 5.7 Quarts Total Oil Capacity with stock oil filter - 6.2 Quarts Oil Filter (AC Delco&reg, PF48 or PF48E, Mobile M1-113, Wix 57060, K&N HP-1017, or equivalent) Requires use of Holley 302-15 Dipstick and Tube Kit or dipstick (GM P/N 12669528) and tube (GM P/N 12625031) *Engine location may need to be adjusted (up / down or fore / aft) for cross member or steering linkage clearance depending on the vehicle, steering configuration and chassis type. ATTENTION! 302-2 is designed to use a GM "F-body" windage tray, GM P/N 12558253. A modification to the windage tray is required to provide clearance to the pick-up tube. A full-length windage tray may be used if the front quarter of the tray is removed. See the instruction sheets showing the windage tray modifications and overall length required. ATTENTION! Additional Parts Needed (Oil Pan Gasket 6665G or GM&reg, 12612350, High Quality RTV sealer, Oil Filter -AC Delco&reg, PF48 or equivalent)

In the box: Drain Plug, Pickup

Specifications

Product Video
